5100 Series Electric Strike

Application

• Designed for cylindrical lock and dead latch applications
• For interior or exterior doors with hollow metal, aluminum, or wood frames

Versatility

• 12 in-field configurations
• Three faceplates standard in every box
• Field-selectable 12/24 VDC
• Non-handed, internal solenoid design
• Field-selectable power failure mode
• Adjustable keeper improves fit on tight door preps

Strength and durability

• 1000 lbs. static strength
• 70 ft-lbs. dynamic strength

Opening

• Single doors with wood, hollow metal or aluminum frames
• Cylindrical lock and dead latch applications

Throw

• 1/2" to 5/8"

Power

• Field-selectable voltage and power fail mode
• 12 VDC continuous duty at 0.38 Amp
• 24 VDC continuous duty at 0.19 Amp

Dimensions

• See the 5100 Series data sheet for dimensions and wiring.

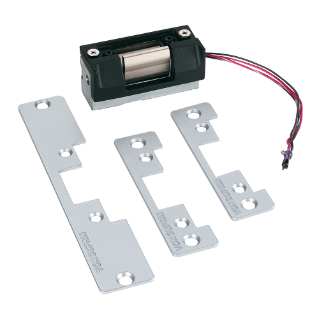

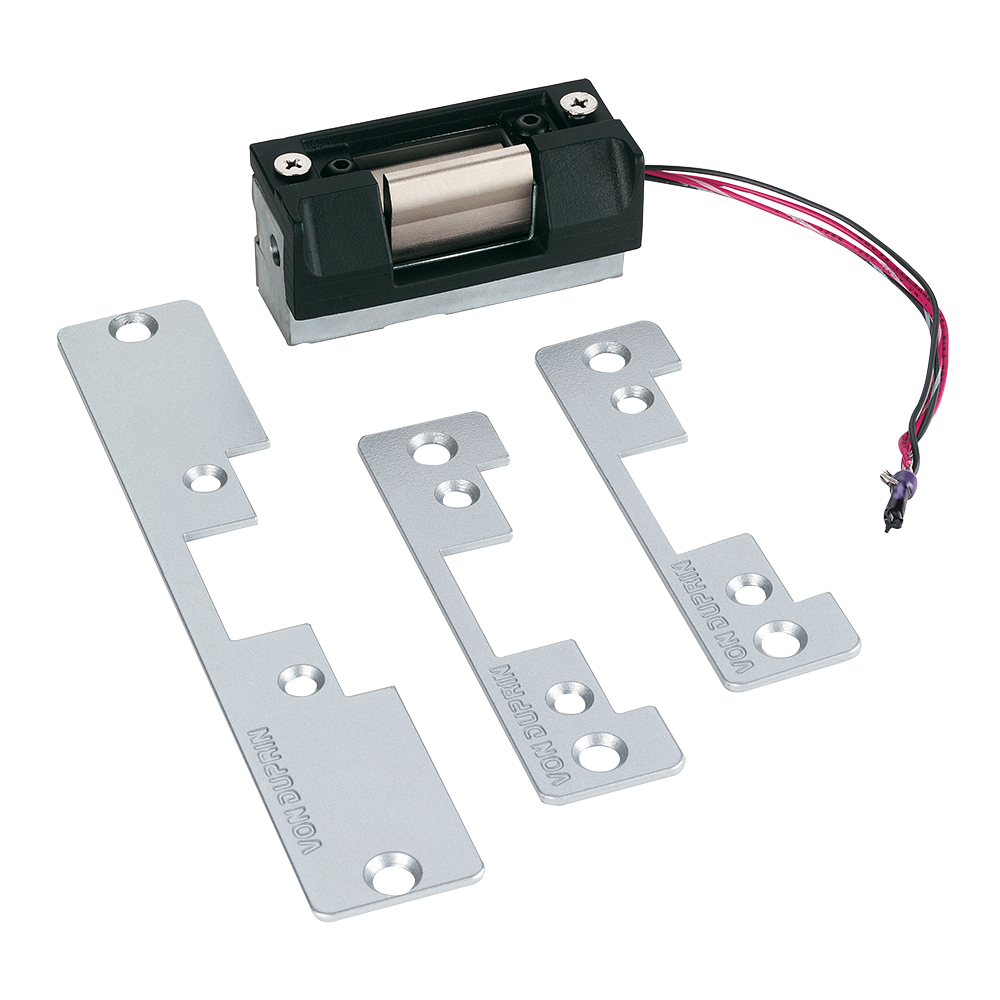

• 3 faceplates:
• Square corner 4-7/8” x 1-1/4”
• Round corner 4-7/8" x 1-1/4”
• Wood application 7-15/16" x 1-7/16”
• 1-11/16" backbox depth

Available finishes

• BHMA 689 / US SP28 aluminum
• BHMA 622 / US19 flat black
• BHMA 695 / US SP313 dark bronze

Options

• 12 VAC to 12 VDC rectifier
• 24 VAC to 24 VDC rectifier

• UL 1034 listed for burglary-resistant electric door strikes
• CSFM California State Fire Marshal listed
