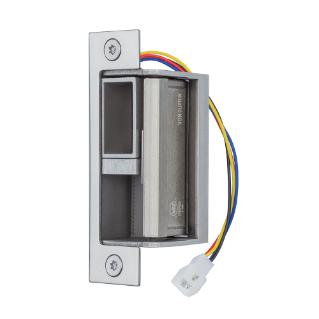

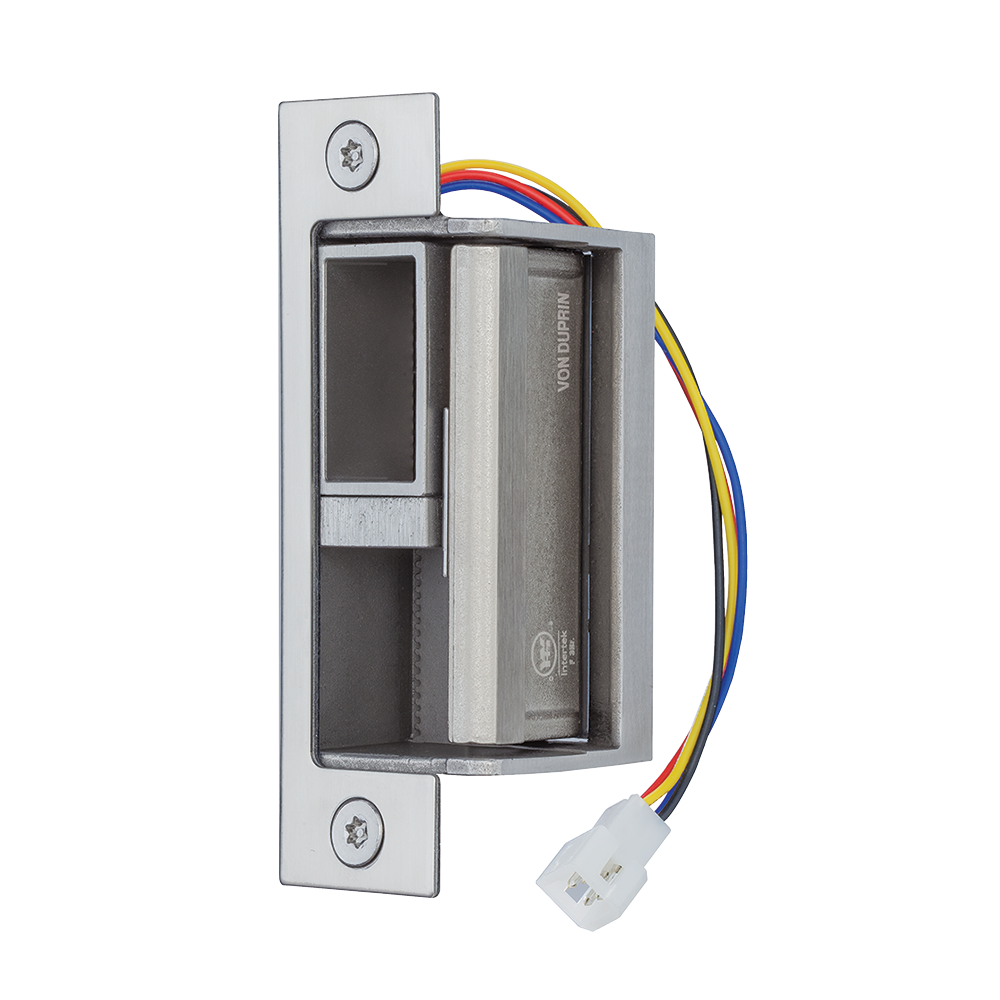

6400 Series Electric Strike

Finish:
Image of Finish
Image of Finish

The 6400 Series is a modular, fire rated strike that lets the user move, or even remove, the keeper, ramp or plug. Offered with both centerline and offset faceplates, it is the ultimate all-in-one strike.



Looking for more information? Connect with an Allegion team member for help.

Connect with Allegion Team

Overview

The 6400 Series electric door strike is designed to be highly configurable to fit almost any mortise or cylindrical lock, including those with offset latches. It provides a fail-secure only solution for fire-rated openings.

The strike allows installers to insert and lock in place the deadbolt keeper, or the plug and dead latch ramp, anywhere within its 3-1/8” vertical opening to suit latchbolt position and functional needs Combined with horizontal adjustability, this makes the easy-to-install 6400 Series a good fit for installations where misalignment or a tight fit may be a problem.

  Cylindrical

  Field Configurable

  Mortise

Application

  • Fits cylindrical and nearly any mortise lock
  • For interior or exterior doors with hollow metal, aluminum, or wood frames
  • 3-hour fire-rated to UL 10C (fail secure only)



Versatility

  • Modular design is configurable to functional needs
  • Two faceplates standard
  • Field-selectable 12/24 VDC or 12/24 VAC
  • Non-handed, internal solenoid design
  • 1/8" horizontal with a range of vertical adjustments for misaligned doors & frames



Strength and durability

  • Heavy-duty stainless steel construction
  • 1500 lbs. static strength
  • 70 ft-lbs. dynamic strength

Opening

  • Single doors with wood, hollow metal or aluminum frames
  • Mortise locks, cylindrical locks and dead latch applications
  • 1" deadbolt (as night latch only, no release)



Throw

  • 3/4" latch



Power

  • Field-selectable voltage
  • 12 VDC continuous duty at 0.375 Amp
  • 24 VDC continuous duty at 0.19 Amp
  • 12/24 VAC intermittent duty at 0.28-0.565 Amp



Dimensions

  • See the 6400 Series data sheet for dimensions and wiring diagrams.
  • Standard 4-7/8" faceplates (one each for offset and centerline locks)
  • 1-3/4" backbox depth



Available finishes

  • BHMA 630 satin stainless steel



Part options

  • Plug-in latchbolt monitor
  • 12 VAC to 12 VDC rectifier
  • 24 VAC to 24 VDC rectifier
  • Entry buzzer
  • UL 1034 listed for burglary-resistant electric door strikes
  • 3-hour fire-rated to UL 10C (fail secure only)
  • UL 294 listed for access control system
