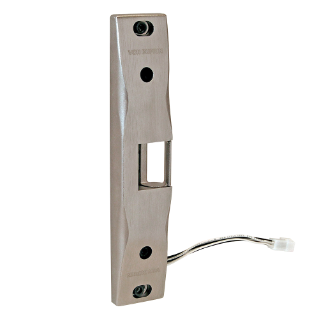

6300 Series Electric Strike

6300 Series Electric Strike

The 6300 is a fire-rated, no-cut surface mounted strike designed for installation speed and convenience.

The 6300 Series electric door strike is designed for installation speed and convenience. It can be used with most rim exit devices as a no-cut solution for storefronts and other challenging applications. Suitable for single or pair doors with a mullion, the 6300 Series is fire-rated and made of heavy-duty, stainless steel. Standard features include plug-in voltage connectors and internal solenoid for a "no-cut" quick installation, indoors or out.

The 6300 Series is designed for use with the Von Duprin 98/99 Series, but can be used with Falcon and most other manufacturers' rim exit devices.

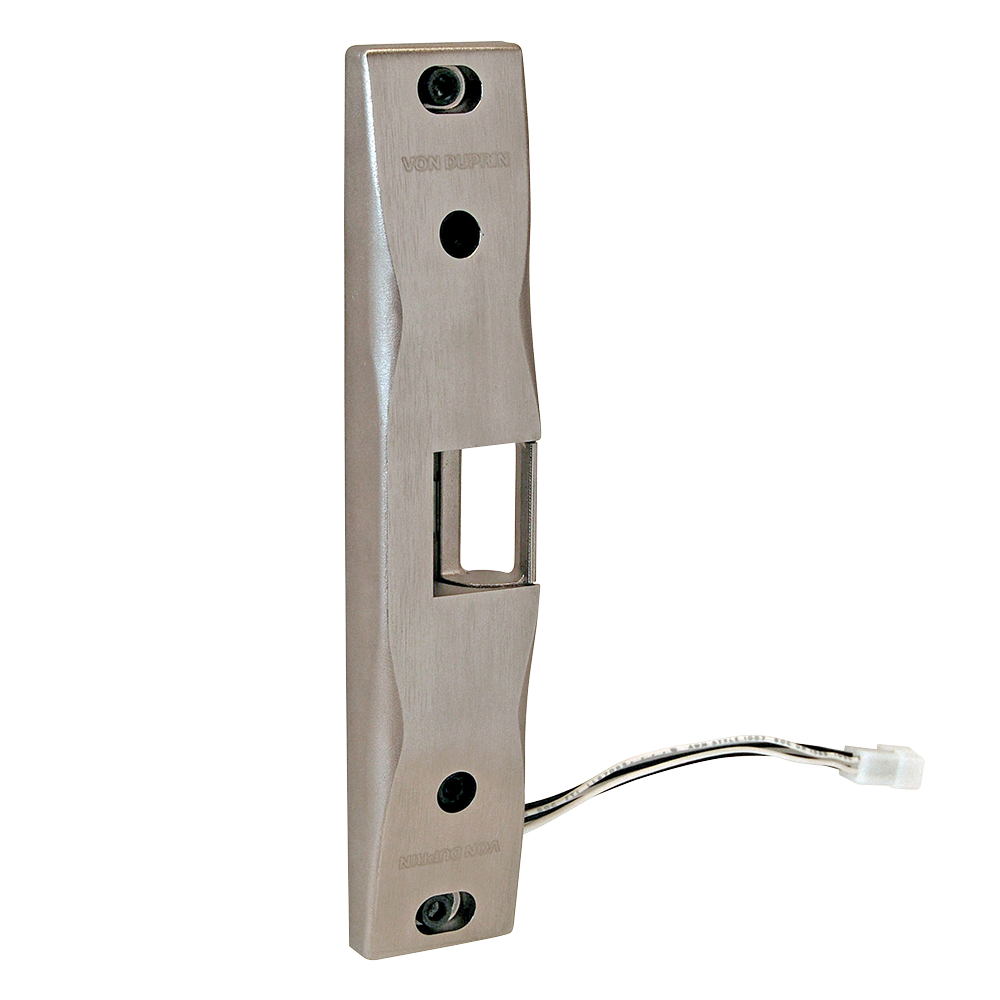

6300 Series Electric Strike

6300 Series
Electric Strikes

The 6300 is a fire-rated, no-cut surface mounted strike designed for installation speed and convenience.



Looking for more information? Connect with an Allegion team member for help.

Overview

The 6300 Series electric door strike is designed for installation speed and convenience. It can be used with most rim exit devices as a no-cut solution for storefronts and other challenging applications. Suitable for single or pair doors with a mullion, the 6300 Series is fire-rated and made of heavy-duty, stainless steel. Standard features include plug-in voltage connectors and internal solenoid for a "no-cut" quick installation, indoors or out.

The 6300 Series is designed for use with the Von Duprin 98/99 Series, but can be used with Falcon and most other manufacturers' rim exit devices.

  Heavy Duty

  No Cut

  Rim

  Surface Mounted

Application

  • Designed for use with rim exit devices
  • For interior or exterior doors with hollow metal, aluminum, or wood frames
  • Simplicity



Surface mounted

  • Requires no alteration or cutting to existing frame
  • Field-selectable voltage 12VDC or 24VDC
  • Non-handed, internal solenoid design
  • Plug-in voltage connectors included for easy installation and removal during strike servicing



Strength and durability

  • Heavy-duty stainless steel construction
  • 1500 lbs. static strength
  • 70 ft-lbs. dynamic strength

Opening

  • Single doors or pair with mullion on wood, hollow metal or aluminum frames



Lockset

  • Rim exit devices



Throw

  • 3/4" latch



Power

  • 24 VDC standard with 12 VDC and rectifier kit conversion to VAC optional
  • 12 VDC continuous duty at 0.5 Amp
  • 24 VDC continuous duty at 0.24 Amp



Dimensions

  • See 6300 Series data sheet for dimension and wiring diagrams.
  • 9" L x 1-3/4"W x 3/4"D



Available finishes

  • BHMA 630 Satin stainless steel



Options

  • 12 VAC to 12 VDC rectifier
  • 24 VAC to 24 VDC rectifier
  • Entry buzzer
  • UL 1034 listed for burglary-resistant electric door strikes
  • UL 10C 3-hour fire-rated (fail secure only)
  • UL 294 listed for access control system
