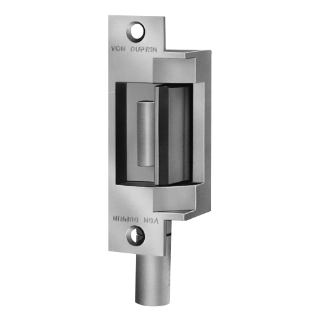

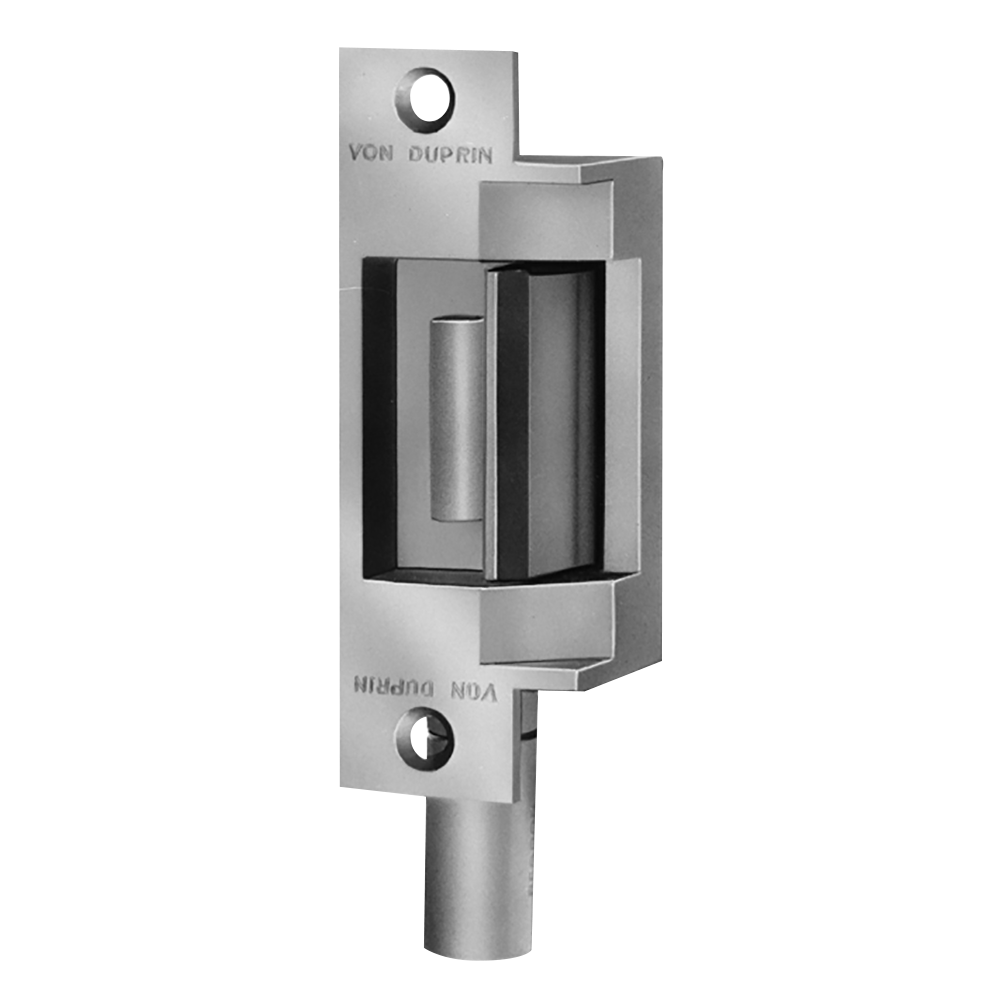

6200 Series Electric Strike

Finish:
Image of Finish
Image of Finish

The 6200 Series includes 17 models of heavy-duty electric strikes. Integrated faceplate, stainless steel construction, and proven reliability make them ideal for new construction.



Looking for more information? Connect with an Allegion team member for help.

Connect with Allegion Team

Overview

The 6200 Series electric strikes are designed to use with mortise and cylindrical devices on single and pair doors. These heavy-duty strikes are fire rated and factory configurable to fail safe or fail secure applications. Their stainless steel construction with integrated faceplate and smooth keeper movement help assure durability and reliability.

Available designs are suitable for a wide range of new construction applications and may also retrofit a number of competitive and older model Von Duprin electric door strikes.  The 6200 Series models are also compatible with Schlage, Von Duprin and Falcon cylindrical and mortise locksets, as well as many other manufacturers' products.

  Heavy Duty

  Mortise

  Cylindrical

Application

  • 17 model configurations available for cylindrical and mortise applications
  • For interior or exterior doors with hollow metal, aluminum, or wood frame models



Simplicity

  • Factory orderable to exact specification
  • 6 popular finishes available to suite with existing hardware
  • Two-piece plug connectors are included for ease of installation and removal during strike servicing



Strength and durability

  • Heavy-duty stainless steel construction
  • 1500 lbs. static strength
  • 70 ft-lbs. dynamic strength

Opening

  • Single door and pair door options with wood, hollow metal or aluminum frames (see data sheet)
  • Lockset:
  • Cylindrical or mortise
  • Mortise only (model 6210)
  • Mortise with deadbolt up to 1" (model 6216)



Throw

  • 3/4" latch



Power

  • 24 VDC standard with 12, 16 and 28 VDC optional
  • 12 or 24 VDC rectifier kit conversion to VAC optional
  • 12 VDC continuous duty at 0.6 Amp
  • 16 VDC continuous duty at 0.4 Amp
  • 24 VDC continuous duty at 0.33 Amp
  • 28 VDC continuous duty at 0.25 Amp



Dimensions

See 6200 Series data sheet for dimensions and wiring diagrams.



Available finishes

  • BHMA 605 polished brass, clear coated
  • BHMA 606 satin brass, clear coated
  • BHMA 612 satin bronze, clear coated
  • BHMA 613 dark bronze, oil rubbed
  • BHMA 629 bright stainless steel
  • BHMA 630 satin stainless steel



Options

  • 12 VAC to 12 VDC rectifier
  • 24 VAC to 24 VDC rectifier
  • Entry buzzer
  • Dual monitor switches
  • Allegion Connect wire extension
  • Certified ANSI BHMA A156.31 Grade 1: 6211, 6211AL, 6211WF
  • UL294 Listed, ensures that the products will operate reliably without creating a hazardous condition
  • UL 1034 listed for burglary-resistant electric door strikes
  • Fire rated UL 10C to 3 hours on single doors; 90 minutes on pair doors with inactive leaf
  • CSFM California State Fire Marshal listed
