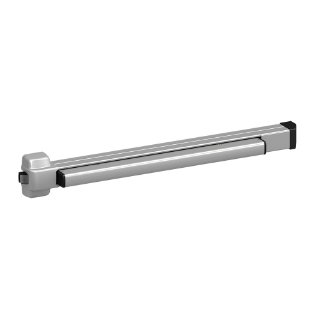

22 Series Exit Devices

Finish:
Image of Finish
Image of Finish

The 22 Series is an economical alternative that incorporates a modern touch bar styling for medium to low traffic openings.



Looking for more information? Connect with an Allegion team member for help.

Connect with Allegion Team

Overview

Ideal for back door employee entrances or parking garage stairwells, the Von Duprin 22 Series exit devices are designed for clinic/healthcare, multi-family, or retail/commercial markets.

It is available in several rim and surface vertical configurations and can be combined with electronic options such as request to exit (RX), latch retraction (LX), Quiet Electric Latch Retratction (QEL), and exit alarm (ALK).

  Push Pad

  Multifamily

  Wide Stile

  • Available for rim and surface-mounted vertical applications
  • Several trim and electronic options
  • Non-handed design
  • ANSI/BHMA A156.3-2014 Grade 1 certified
  • ANSI/UL 10C (fire rated only)
  • ANSI/UL 305
  • CAN/ULC-S104 (fire rated only)
  • CAN/ULC-S132



Certifications and specifications are specific to each configuration. Refer to the 22 Series catalog for more details.

The 22 Series offers the following device types:

  • Rim, panic
  • 27: Surface mounted vertical rod (SVR)



Devices can be ordered fire-rated by adding  “-F” to the suffix.

The 22 Series is available less trim (LT) and several versions of the exit trim models listed below:



  • Exit Only (EO)
  • Dummy trim (DT)
  • Lever (L)
  • Lever, blank escutcheon (LBE)

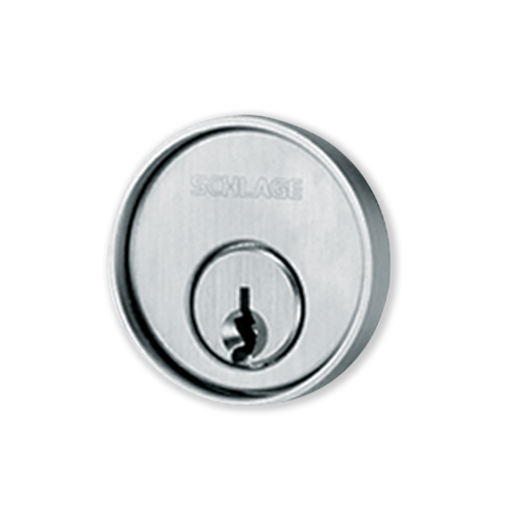

  • Night latch, key retracts (NL)
  • Night latch, optional pull (NLOP)
  • Knob (K)
  • Knob, blank escutcheon (KBE)
  • Thumbpiece (TP)
  • Thumbpiece, blank escutcheon (TPBE)
  • 526: Powder-coated Chrome
  • 622: Powder-coated Matte Black
  • 689: Powder-coated Aluminum
  • 695: Powder-coated Dark Bronze

The 22 Series can be customized to meet a variety of facility needs with several mechanical, electronic and finish options.

  • RX: Request to exit is a switch is placed in the exit device to monitor an opening; when the push bar is depressed, a signal is sent to a monitoring device
  • LX: Latchbolt monitoring signals use of an opening
  • AX: the accessible device is UL certified to meet a 5 lb. operating force requirements for the 2010 ADA (Chapters 404.2.7 and 309.4) and 2013 California Building Code (Chapter 11B-309.4)
  • ALK: Alarm kit, unauthorized opening triggers horn
  • QEL: Quiet electric latch retraction, electronic latch retraction with limited operational noise
  • HW: Wind only - hurricane rated



The 22 Series offers many accessories to meet evolving needs of any facility; refer to the pricebook for a complete list.
