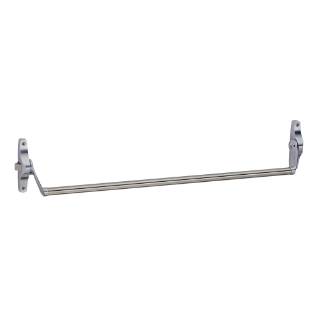

    55 Series Exit Devices

    Finish:
    Image of finish
    Image of finish

    The 55 Series is ideal for environments needing a traditional-looking narrow stile device, but is for heavy-duty applications.



    Looking for more information? Connect with an Allegion team member for help.

    Connect with Allegion Team

    Overview

    The 55 Series exit devices are classic narrow stile crossbars, and  commonly used in retro-inspired architecture and historical buildings.

      Cross Bar

      Heavy Duty

      Narrow Stile

      Fire-Rated

    • Several surface-mounted vertical applications
    • Several rim applications
    • Available in 3’ and 4’ lengths that are field sizeable for single and double door applications
    • Architect appreciate 55 Series for historic buildings
    • Ideal for traditional or classic aesthetic applications
    • ANSI/BHMA A156.3, 2014 Grade 1 certified
    • ANSI/UL 10C (fire rated only)
    • ANSI/UL 305
    • CAN/ULC-S104 (fire rated only)
    • CAN/ULC-S132



    Specifications and certifications are specific to each configuration. See the 55 Series catalog for more information.

    The 55 Series offers the following device types:

    • Rim, panic only
    • 47: concealed vertical rods (CVR), wood door concealed (WDC)
    • 75: mortise, panic and fire rated

    Devices can be ordered fire-rated by adding  “-F” to the suffix.

    The 55 Series is available less control (LC), less trim (LT) and several versions of the exit trim models listed below:

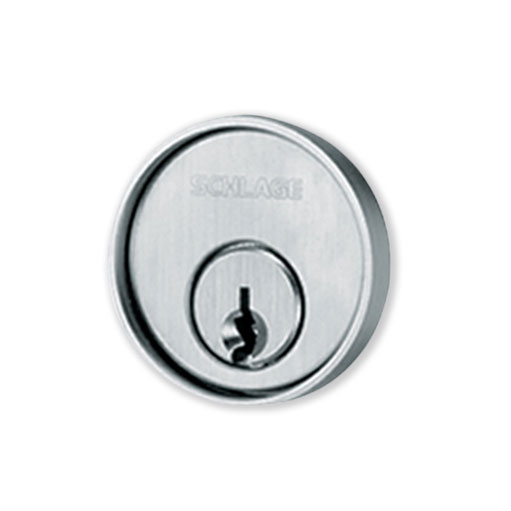

    • 110

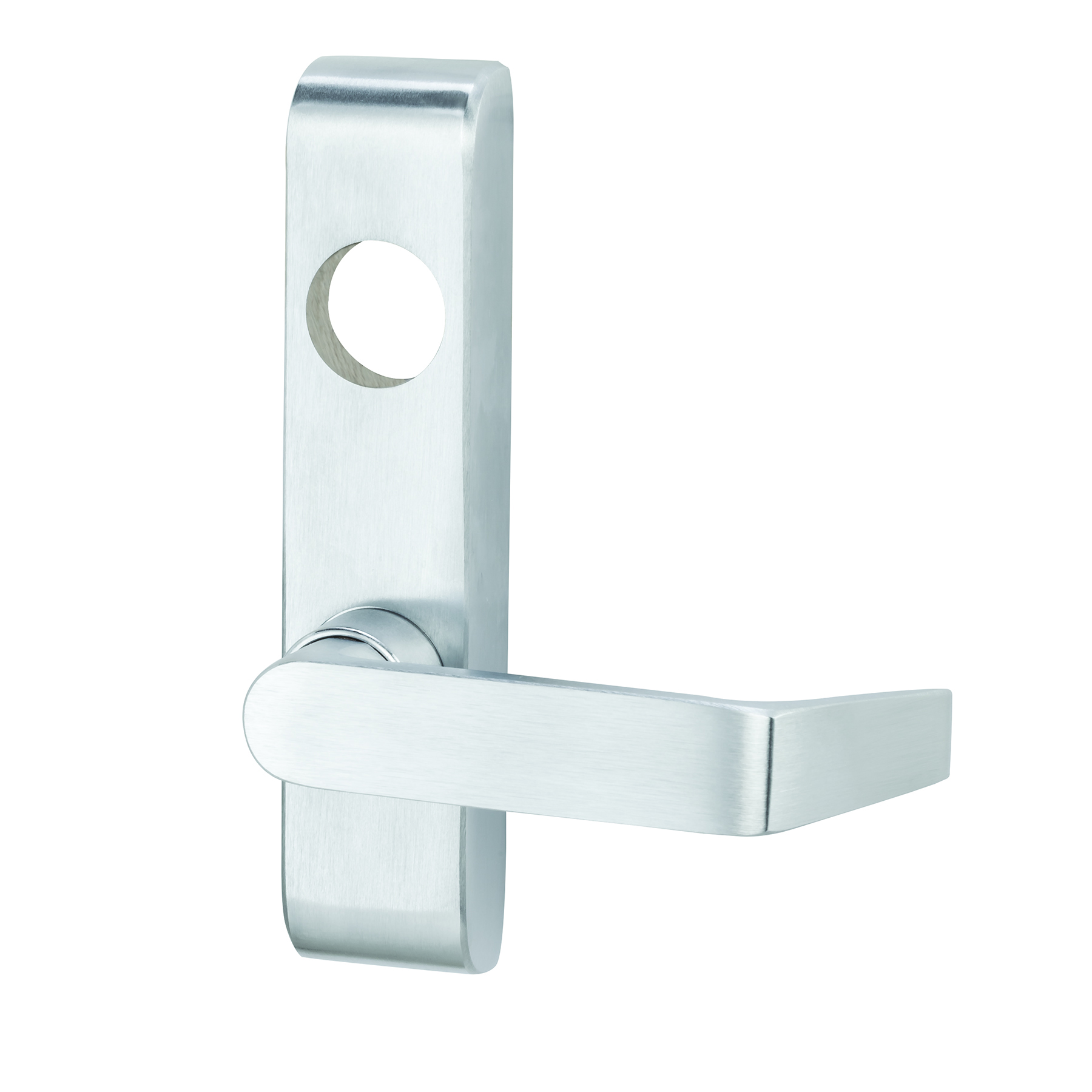

    • 371

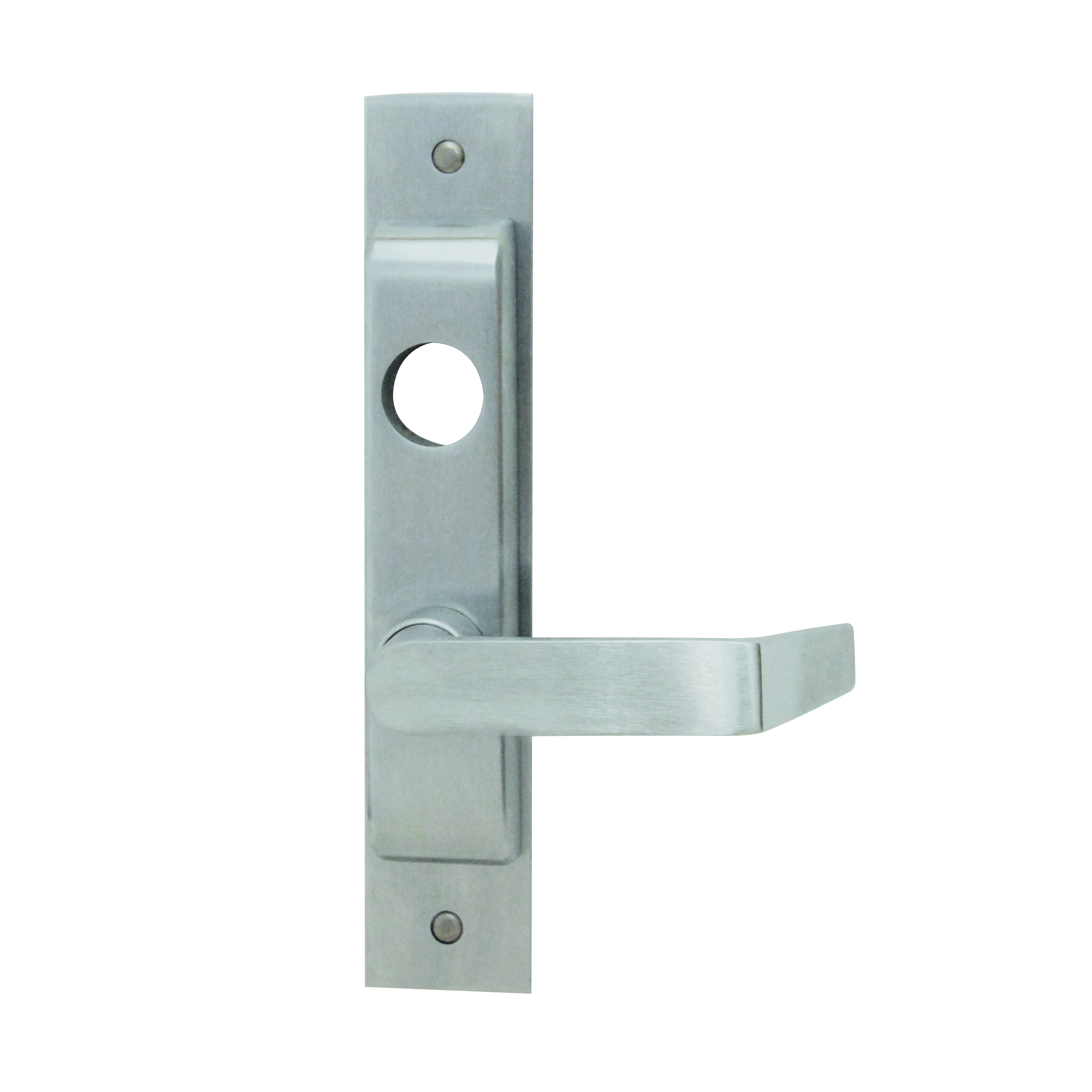

    • 375

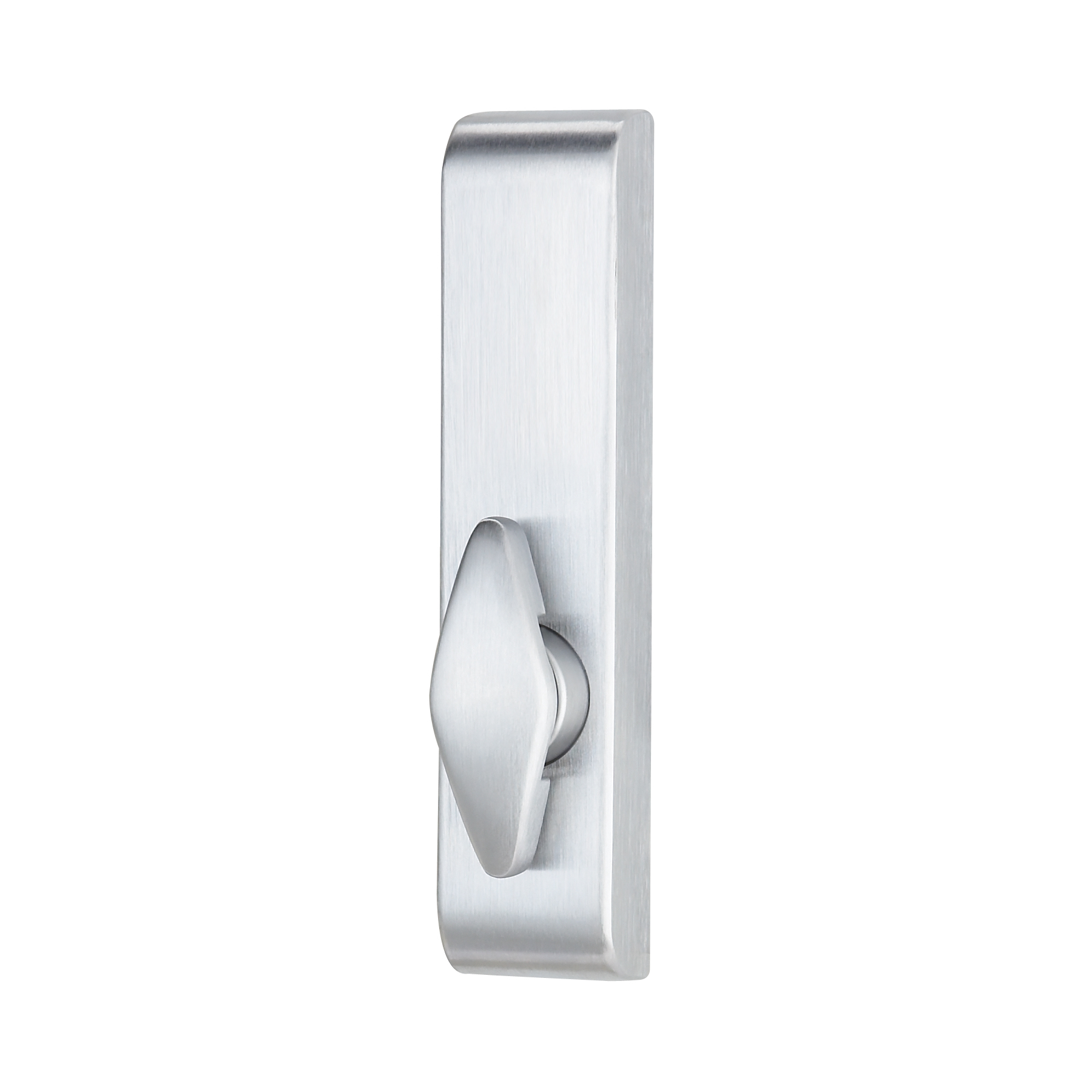

    • 376

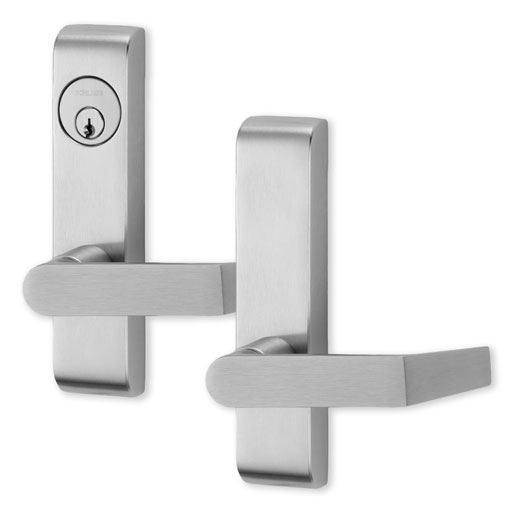

    • 379
    • 550

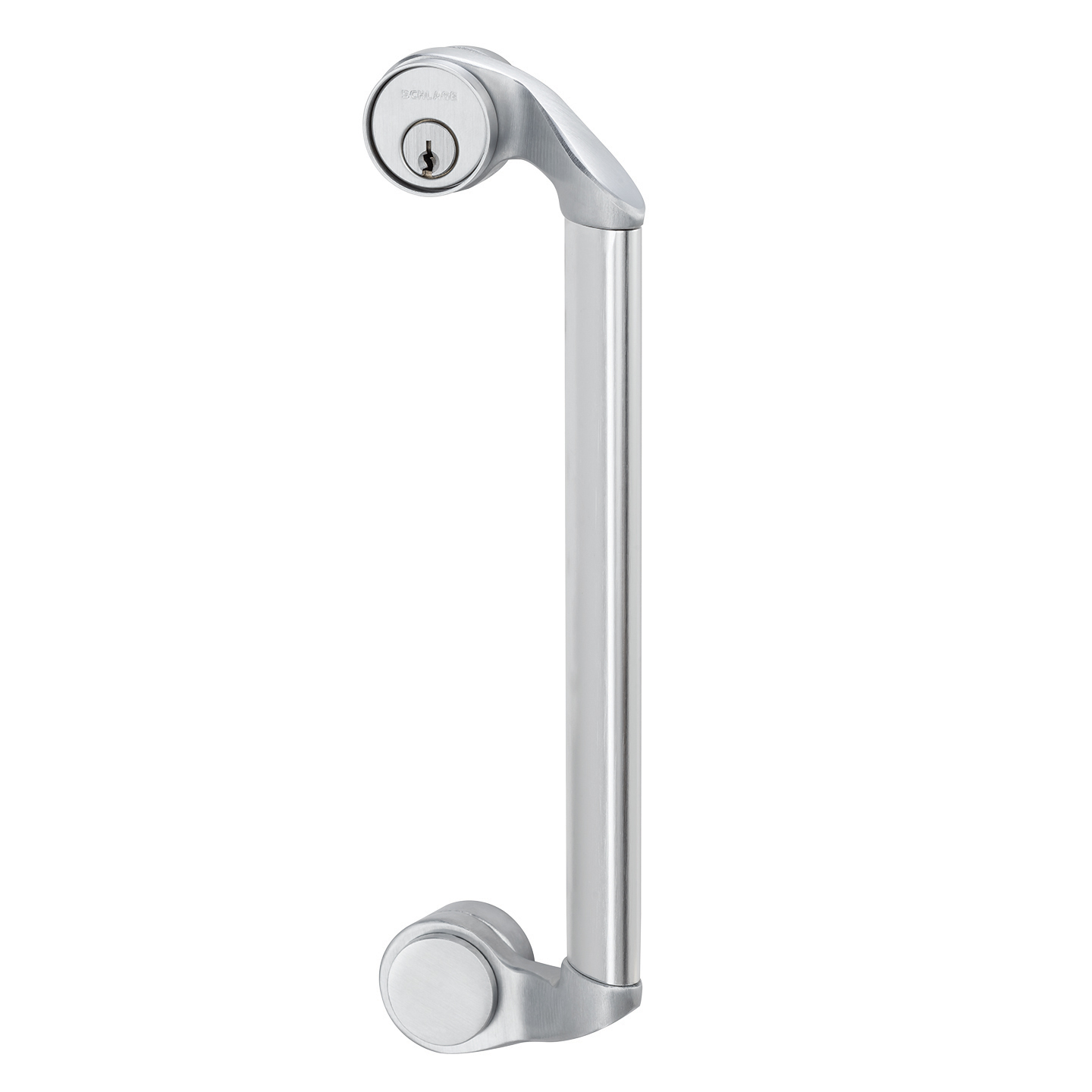

    • 555

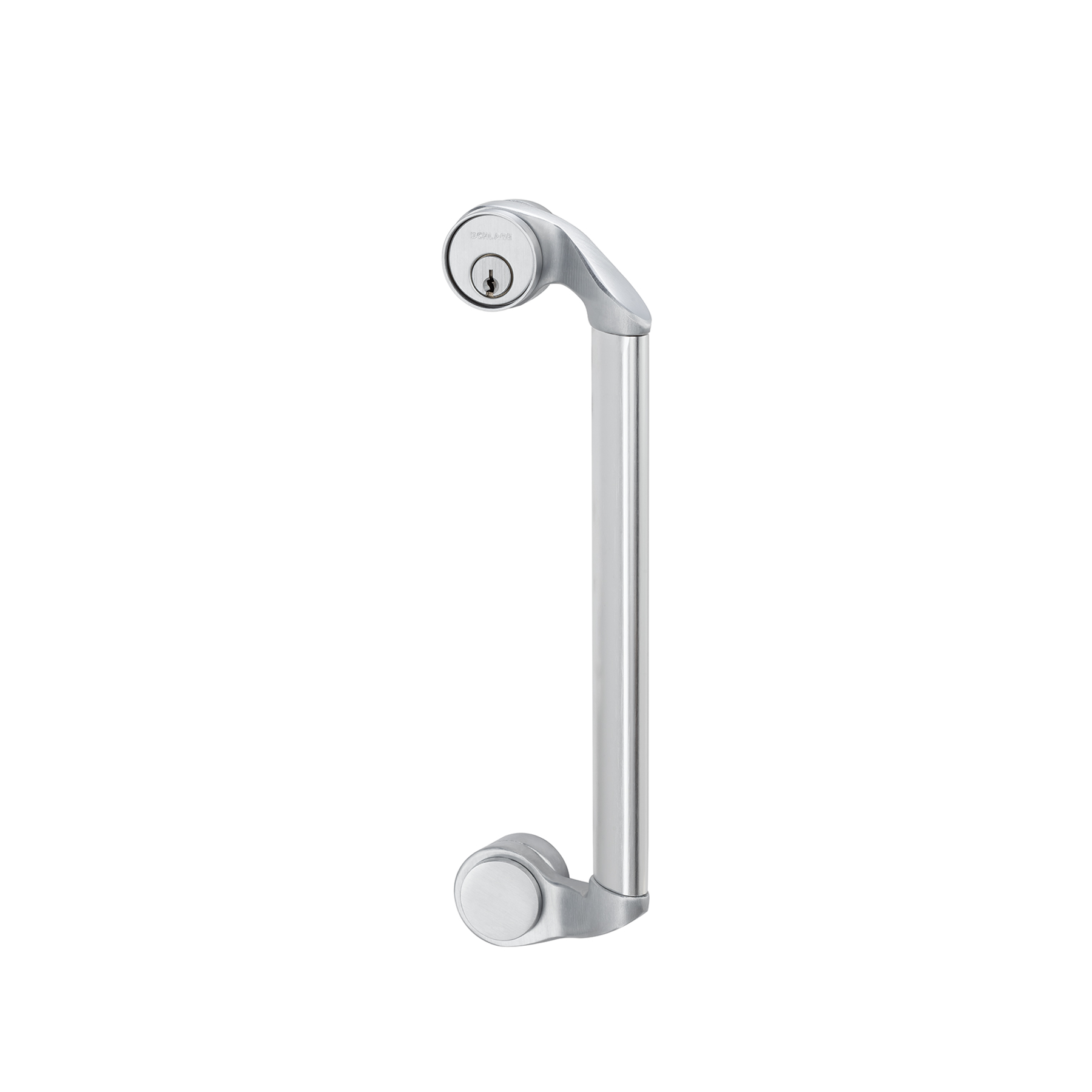

    • 556

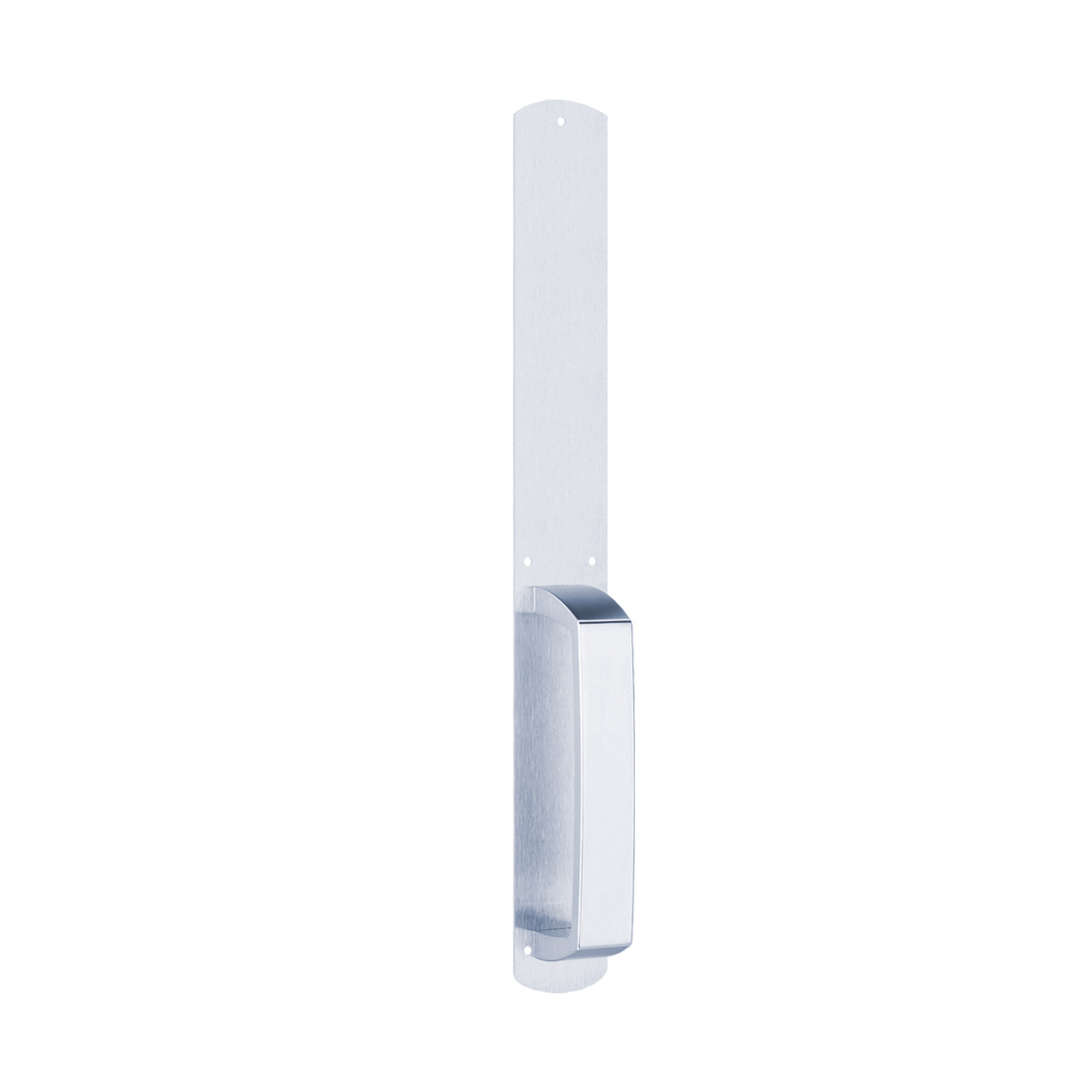

    • 609
    • Exit Only (EO)
    • Dummy trim (DT)
    • Lever (L)
    • Night latch, key retracts (NL)
    • Lever, blank escutcheon (LBE)
    • Night latch, optional pull (NLOP)
    • Lever, dummy trim (LDT)
    • Turn lever (TL)
    • Turn lever, blank escutcheon (TLBE)
    • Turn lever, optional pull (TLOP)
    • 605: Bright Brass
    • 606: Satin Brass
    • 612: Satin Bronze
    • 613: Satin Bronze-Oil Rubbed
    • 625: Bright Chrome
    • 626: Satin Chrome
    • 626-AM: Satin chrome, Antimicrobial coating
    • 643e: Aged Bronze
    • 693: Painted Black*
    • 721: Bright Brass, no lacquer*
    • 728: Satin Brass, no lacquer*



    *Finish is available as a special.

    The 55  Series can be customized with several mechanical, electronic and finish options to meet facility needs. A few common options are below:



    • RX: Request to exit is a switch is placed in the exit device to monitor an opening; when the push bar is depressed, a signal is sent to a monitoring device
    • E: Electric unlocking of outside lever for mortise devices. Allows the device to pair with an access control system, fire alarm system or remote switching station.
    • ES: Pullman latch for electric strike
    • HW: Wind-only - Hurricane Rated
    • KN: Knurling on crossbars provide a tactile warning to indicate doors that lead to hazardous areas; ex: stairs, loading platforms, boiler rooms, etc.



    The 55 Series offers many accessories to meet evolving needs of any facility; refer to the pricebook for a complete list.
