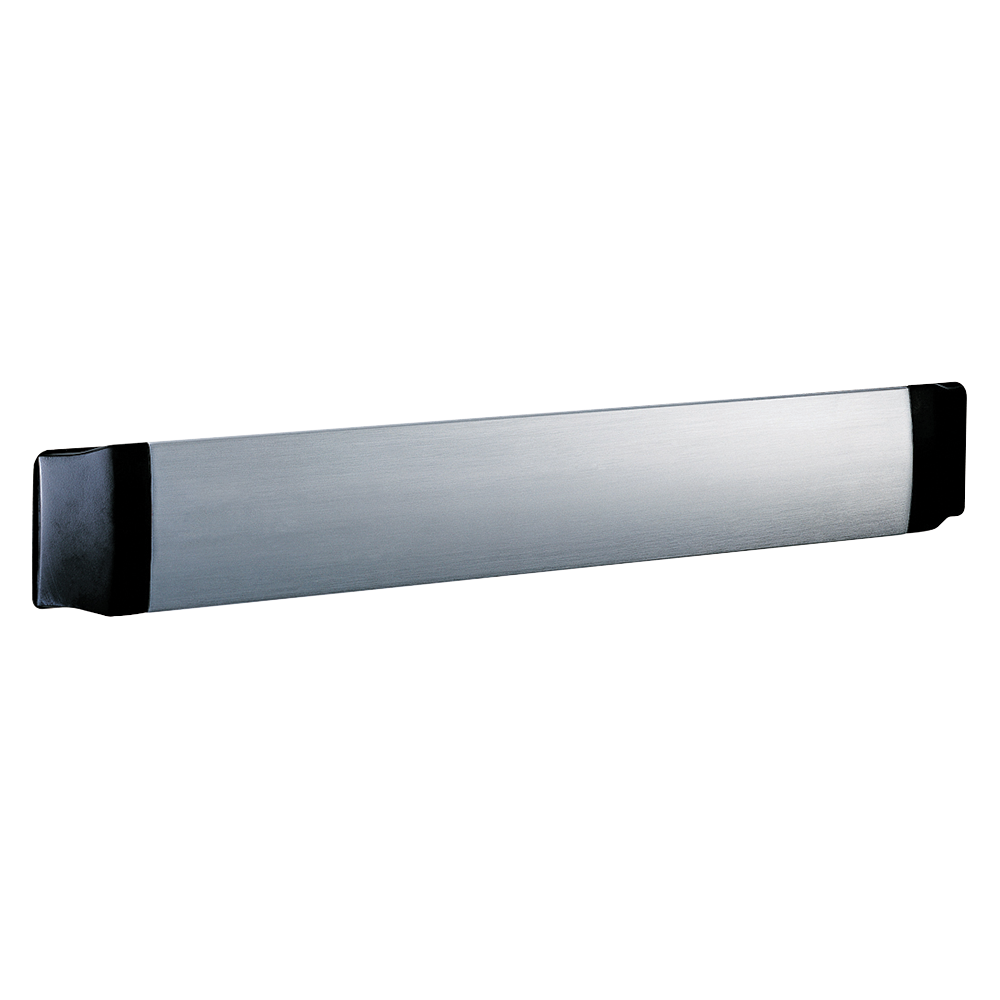

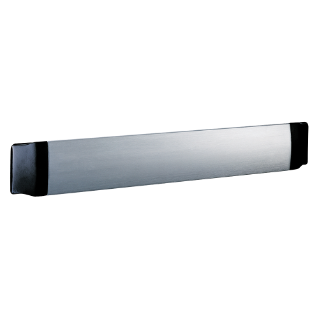

94/95 Series INPACT™ Exit Devices

Finish:
Image of Finish
Image of Finish

The 94/95 INPACT Series recessed push pads provide a recessed push pad design that can reduce impact and protect it from abuse.



Looking for more information? Connect with an Allegion team member for help.

Connect with Allegion Team

Overview

The 94 and 95 Series recessed push pads are for high-traffic applications and reduce impact. They are fully integrated within a door to protect it from abuse.

Both the 94 and 95 Series are low-profile devices and are compatible with hollow metal doors. Both series are commonly used in hospitals and other facilities where building openings must accommodate high volumes of people and equipment.

The 94 and 95 Series have the same functionality, but different design elements. The 94 Series has a smooth mechanism case, while the 95 Series has a grooved mechanism case.

  Recessed Mounted

  Healthcare

  • Reduced projection of push pad reduces potential obstruction
  • Quiet electronic latch retraction option for access control applications
  • Available as part of Allegion INPACT door system
  • Antimicrobial coating available
  • Sloped die-cast metal endcaps deflect impact
  • Extruded aluminum construction
  • Available with less bottom rod (LBR) to reduce floor obstruction
  • Non-handed design
  • ANSI/BHMA A156.3 2014 Grade 1 certified
  • ANSI/UL 10C (fire-rated only)
  • ANSI/UL 305
  • CAN/ULC-S104 (fire-rated only)
  • CAN/ULC-S132



Specifications and certifications are specific to each configuration. See the 94/95 Series catalog for more information.

The 94/95 Series offers the following device types:

  • 47: concealed vertical rods
  • 48: concealed vertical rod (bottom latch has longer throw)
  • 75: mortise locks

Devices can be ordered fire-rated by adding  “-F” to the suffix.

The 94/95 Series is available less control (LC), less trim (LT) and several versions of the exit trim models listed below:

  • Exit Only (EO)
  • Dummy trim (DT)
  • Lever (L)
  • Lever, blank escutcheon (LBE)
  • Lever, dummy trim (LDT)
  • Night latch, key retracts (NL)
  • Turn lever (TL)
  • Turn lever, blank escutcheon (TLBE)
  • Turn lever, optional pull (TLOP)
  • 605: Bright Brass
  • 606: Satin Brass
  • 612: Satin Bronze
  • 625: Polished Chrome
  • 626: Satin Chrome
  • 626-AM: Satin chrome, Antimicrobial coating
  • 628: Anodized aluminum
  • 710: Duranodic Dark Bronze

The 94/95 Series can be customized with several mechanical, electronic and finish options to meet any facility needs. A few common options are below:



  • LX: Latchbolt monitoring signals use of an opening
  • QEL: Quiet electric latch retraction limits operational noise
  • HW: Wind only (HW) Hurricane rated
  • AX: Accessible device compliant with the California Building Code (Section 11B-309.4) requirement for 5 lb. maximum operational force.
  • AM: Antimicrobial coating available in finishes.



The 94/95 Series offers many accessories to meet evolving needs of any facility; refer to the Allegion INPACT 94/95 exit device pricebook for complete list.

Von Duprin 101 Icon

Exit Devices

For frequently asked questions, educational resources and technical product materials, visit the Exit Devices 101 page.

Learn The Basics

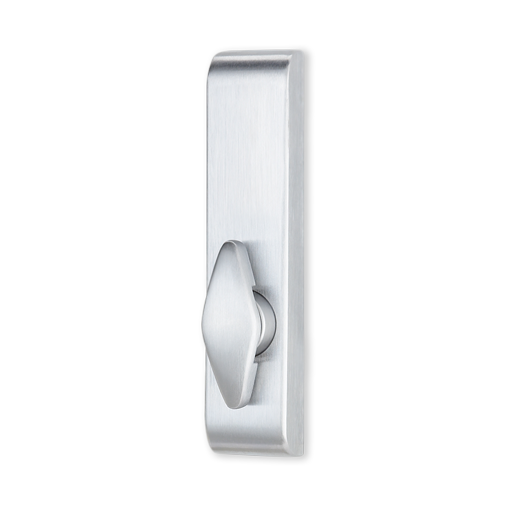

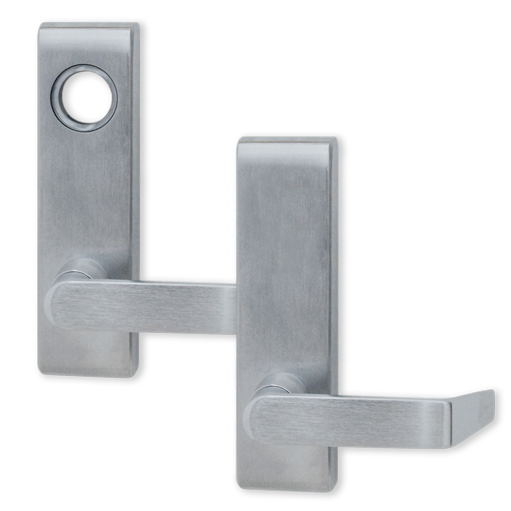

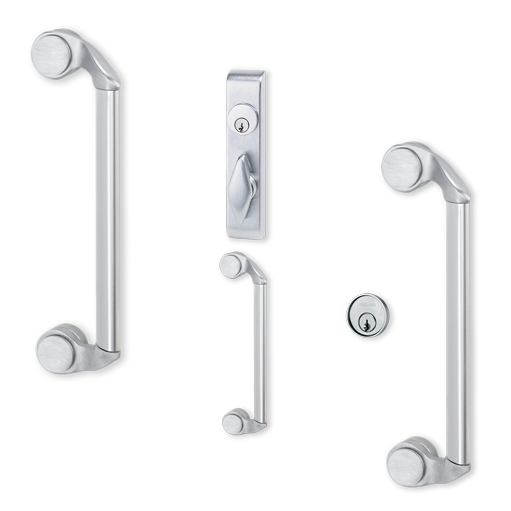

Compatible Exit Trim

These exit trims are compatible with the series you've selected. Click below to explore the available functions.

Need Replacement Parts?


Here's what you need to know to identify the product, part, kit or model number and get in touch with an Allegion Team member.

Get Started

Related Products

Related Products & Accessories
98-99 Series Exit Devices
98/99 Series Exit Devices
The 98/99 Series are high-performance, wide stile heavy-duty exit devices featuring push pads that offer many customizable options.
Learn More >>
33A 35A Series Exit Devices
33A/35A Series Exit Devices
The 33A/35A Series are high-performance, narrow stile exit devices featuring heavy-duty push pads that offer many customizable options.
Learn More >>

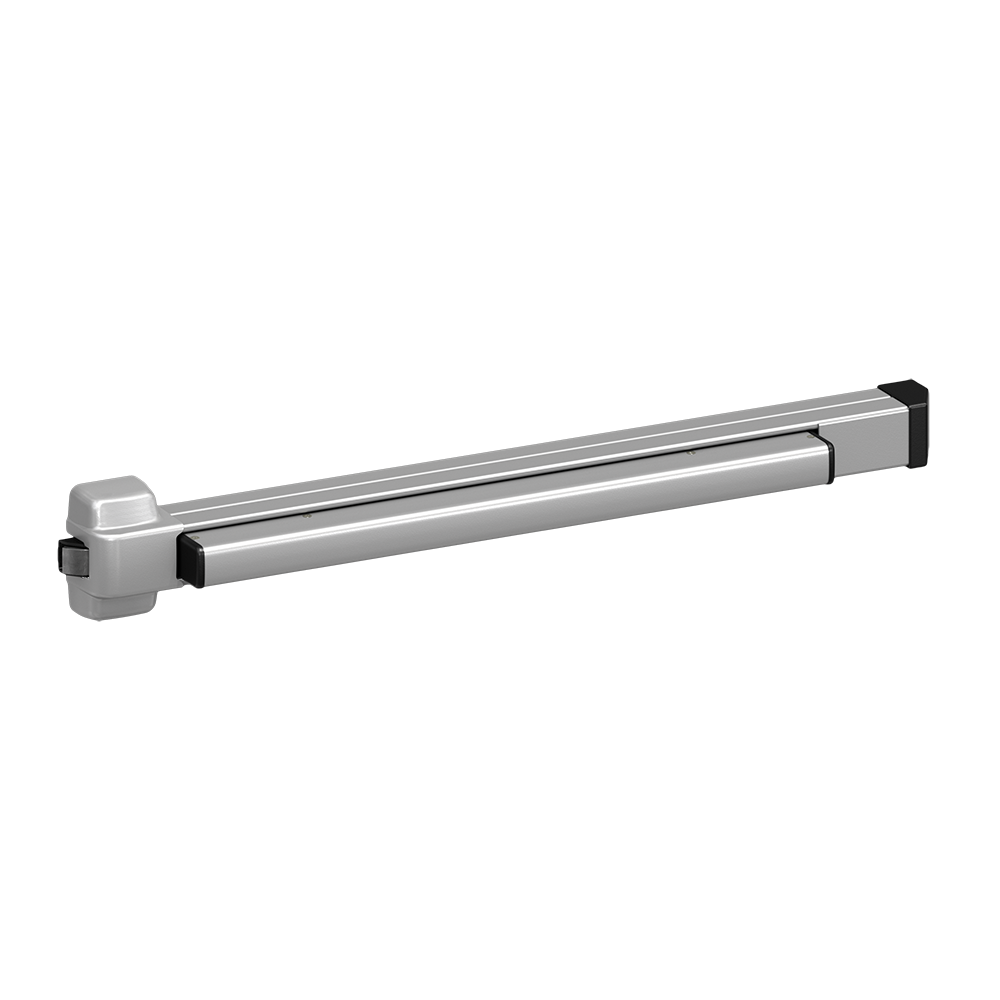

22 Series Exit Devices
22 Series Exit Devices
The 22 Series exit device is an economical alternative that incorporates a modern touch bar styling for medium to low traffic openings.
Learn More >>

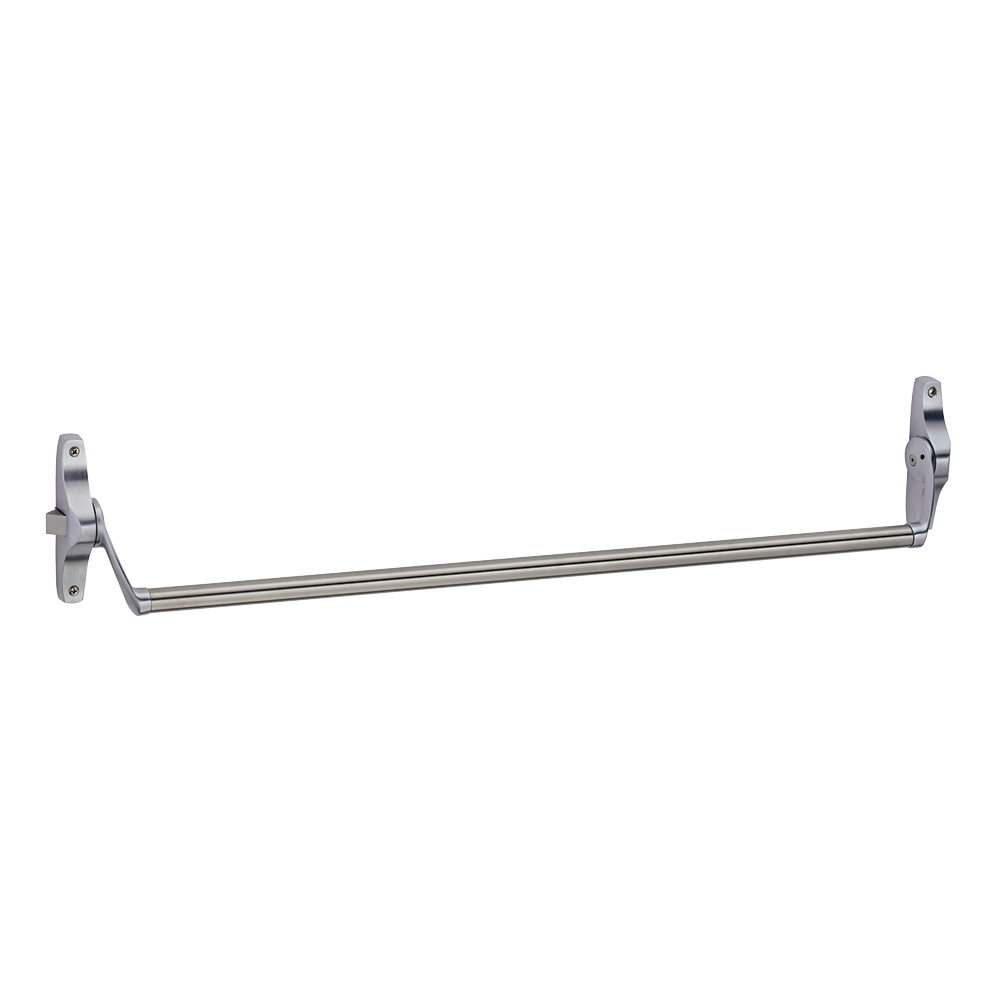

55 Series Exit Devices
55 Series Exit Devices
The 55 Series is a classic narrow stile crossbar exit device with a traditional look commonly used in retro-inspired and historical buildings.
Learn More >>

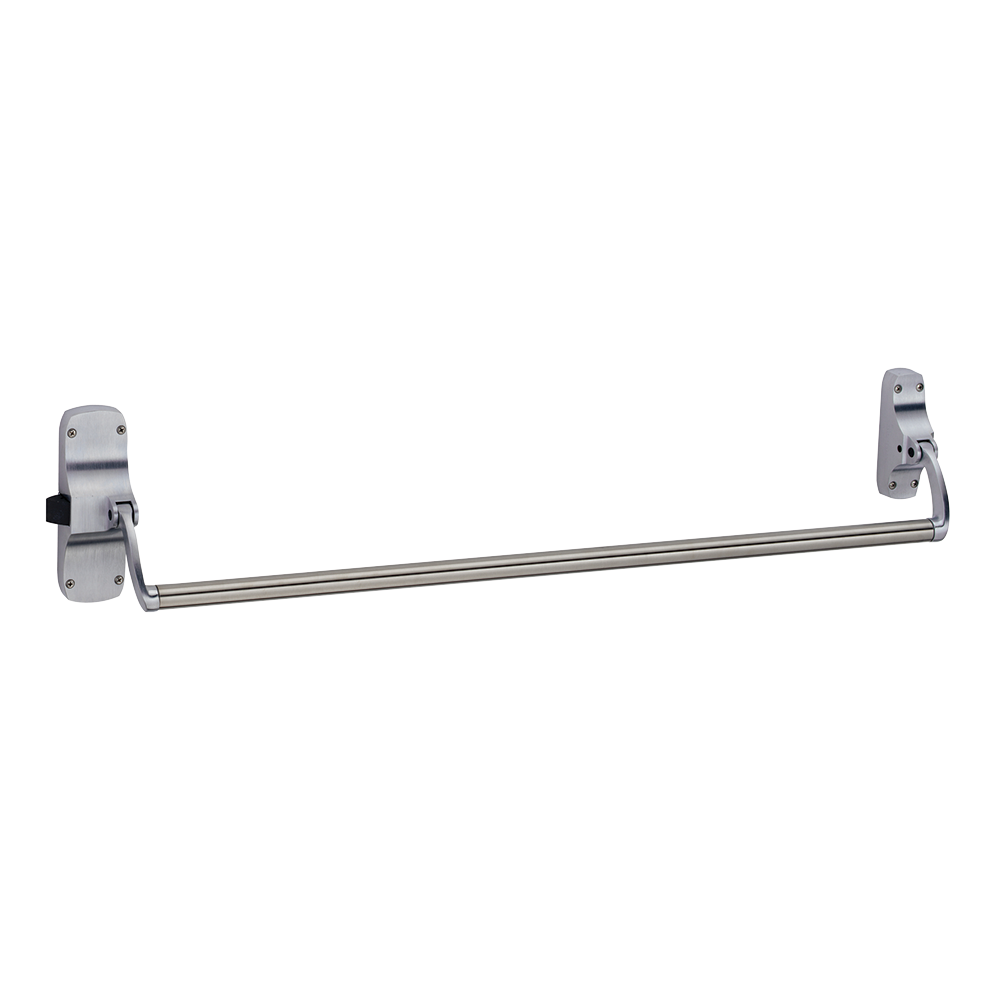

88 Series Exit Devices
88 Series Exit Devices
The 88 Series are ideal crossbar exit device for environments needing a traditional-looking wide stile, but designed for heavy-duty applications.
Learn More >>

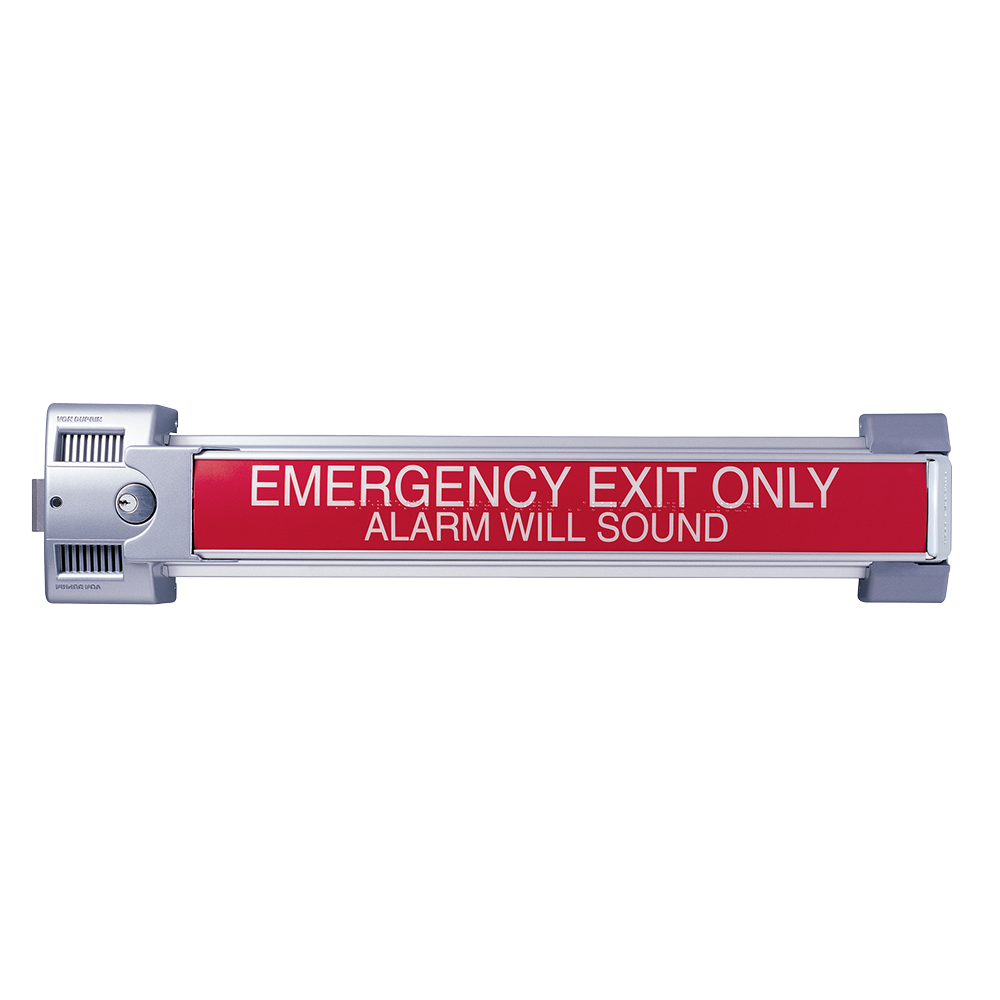

2670 GUARD-X Exit Devices
