88 Series Exit Devices

Finish:
Image of Finish
Image of Finish

The 88 Series is ideal for environments needing a traditional-looking wide stile device, but is for heavy-duty applications.



Looking for more information? Connect with an Allegion team member for help.

Connect with Allegion Team

Overview

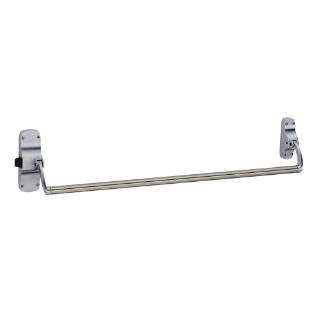

The 88 Series is a classic crossbar exit device. A standard wide stile device, the 88 Series is designed for applications where a crossbar is preferred.

  Cross Bar

  Heavy Duty

  Wide Stile

  Fire-Rated

  • Several surface-mounted vertical applications
  • Several rim applications
  • Available in 3’ and 4’ lengths that are field sizeable for single and double door applications
  • Ideal for traditional or classic aesthetic applications
  • ANSI/BHMA A156.3, 2014 Grade 1 certified
  • ANSI/UL 10C (fire rated only)
  • ANSI/UL 305
  • CAN/ULC-S104 (fire rated only)
  • CAN/ULC-S132



Specifications and certifications are specific to each configuration. See the 88 Series catalog for more information.

The 88 Series offers the following device types:

  • Rim, panic and fire rated
  • 27: surface-mounted vertical rods
  • 47: concealed vertical rods
  • 75: mortise locks

Devices can be ordered fire-rated by adding  “-F” to the suffix.

The 88 Series is available less control (LC), less trim (LT) and several versions of the exit trim models listed below:

  • Exit Only (EO)
  • Dummy trim (DT)
  • Lever (L)
  • Lever, dummy trim (LDT)
  • Night latch, key retracts (NL)
  • Lever, blank escutcheon (LBE)
  • Knob (K)
  • Knob, blank escutcheon (KBE)
  • Knob, dummy trim (KDT)
  • Knob night latch, key retracts (KNL)
  • Night latch, optional pull (NLOP)
  • Turn lever (TL)
  • Turn lever, blank escutcheon (TLBE)
  • Turn lever, optional pull (TLOP)
  • Thumbpiece (TP)
  • Thumbpiece, blank escutcheon (TPBE)
  • Thumbpiece, night latch (TPNL)
  • 605: Bright Brass
  • 606: Satin Brass
  • 612: Satin Bronze
  • 613: Satin Bronze-Oil Rubbed
  • 625: Bright Chrome
  • 626: Satin Chrome
  • 626-AM: Satin chrome, Antimicrobial coating*
  • 643e: Aged Bronze
  • 693: Painted Black
  • 721: Bright Brass, no lacquer*
  • 728: Satin Brass, no lacquer*



*Finish is available as a special.

The 88 Series can be customized with several mechanical, electronic and finish options to meet any facility needs. A few common options are below:



  • RX: Request to exit is a switch placed in the exit device to monitor an opening; when the push bar is depressed, a signal is sent to a monitoring device
  • E: Electric unlocking  of outside lever for mortise devices. Allows the device to pair with an access control system, fire alarm system or remote switching station.
  • HH: Wind and Impact - Hurricane Rated
  • HW: Wind Only - Hurricane Rated
  • KN: Knurling  on crossbars provide a tactile warning to indicate doors that lead to hazardous areas; ex: stairs, loading platforms, boiler rooms, etc.



The 88 Series offers many accessories to meet evolving needs of any facility; refer to the pricebook for a complete list.

Von Duprin 101 Icon

Exit Devices

For frequently asked questions, educational resources and technical product materials, visit the Exit Devices 101 page.

Learn The Basics

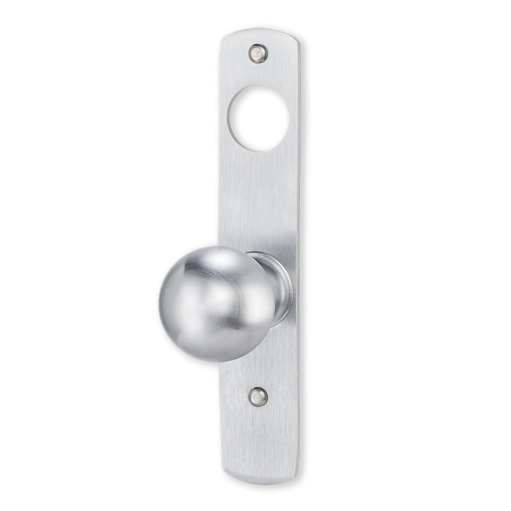

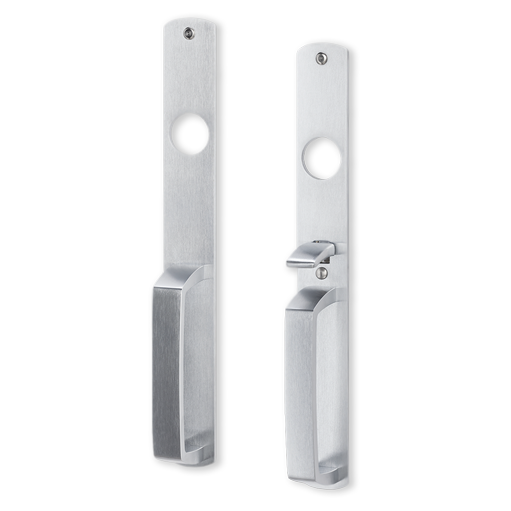

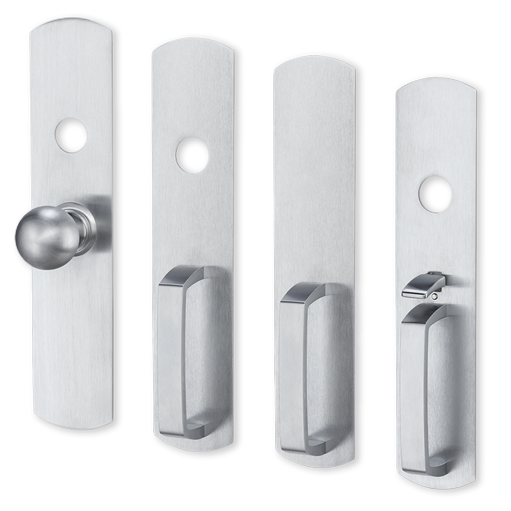

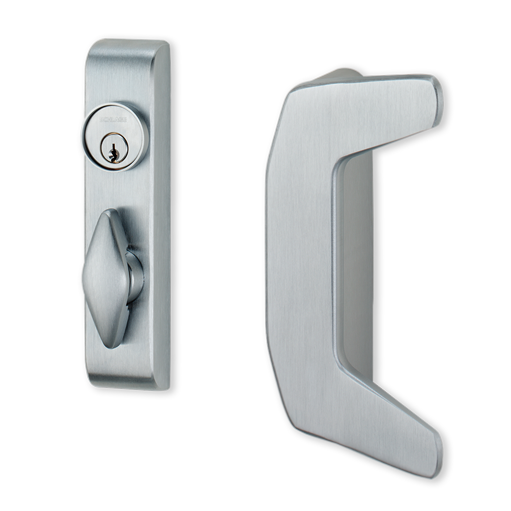

Compatible Exit Trim

These exit trims are compatible with the series you've selected. Click below to explore the available functions.

Need Replacement Parts?


Here's what you need to know to identify the product, part, kit or model number and get in touch with an Allegion Team member.

Get Started
