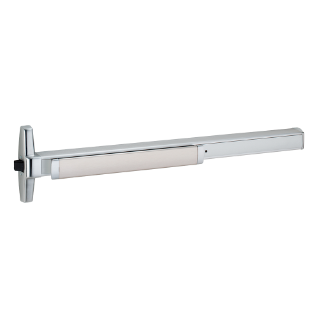

    33A/35A Series Exit Devices

    Finish:
    Image of finish
    Image of finish

    The 33A/35A Series are high-performance, narrow stile devices featuring heavy-duty push pads that offer many customizable options.



    Looking for more information? Connect with an Allegion team member for help.

    Connect with Allegion Team

    Overview

    The 33A/35A Series devices are narrow stile heavy-duty push pads commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others.

    Architectural design elements differ slightly between the 33A and the 35A. The 35A Series device has a smooth mechanism case, while the 33A Series has a grooved mechanism case.

      Push Pad

      Healthcare

      Higher Education

      Narrow Stile

      Heavy Duty

      K-12

    • Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs
    • Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
    • A variety of field-configurable options and retrofit kits available
    • ANSI/BHMA A156.3 2014 Grade 1 certified
    • ANSI/UL 10C (fire-rated only)
    • ANSI/UL 305
    • CAN/ULC-S104 (fire-rated only)
    • CAN/ULC-S132



    Specifications and certifications are specific to each configuration. See the 33A/35A Series catalog for more information.

    The 33A/35A Series offers a solution for most single, double and double egress doors.

    Below are the available device types:



    • Rim, no suffix
    • 27: surface mounted vertical rod (SVR)
    • 47: concealed vertical rod (CVR)
    • 48: concealed vertical rod (CVR) (bottom latch has longer throw)
    • 49: concealed vertical cable (CVC)
    • 50WDC: wood door concealed (WDC) vertical cable



    Devices can be ordered fire-rated by adding  “-F” to the suffix.

    The 33A/35A Series is available less control (LC), less trim (LT) and several versions of the exit trim models listed below:

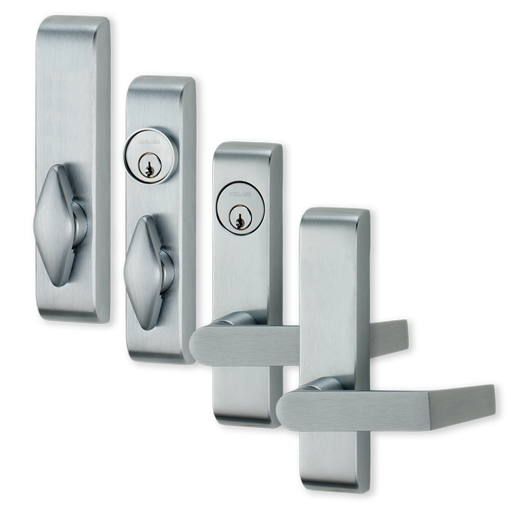

    • 360
    • 374
    • 376

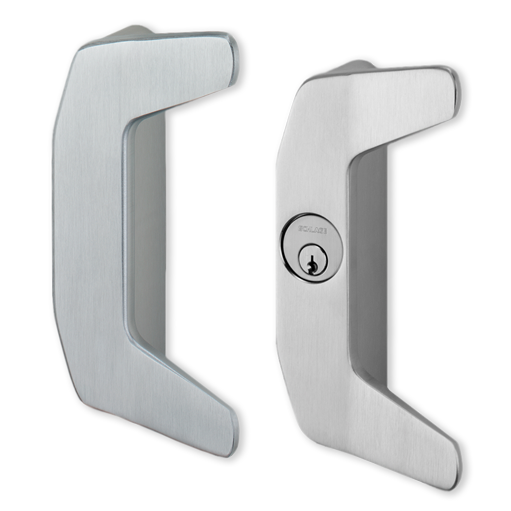

    • 386

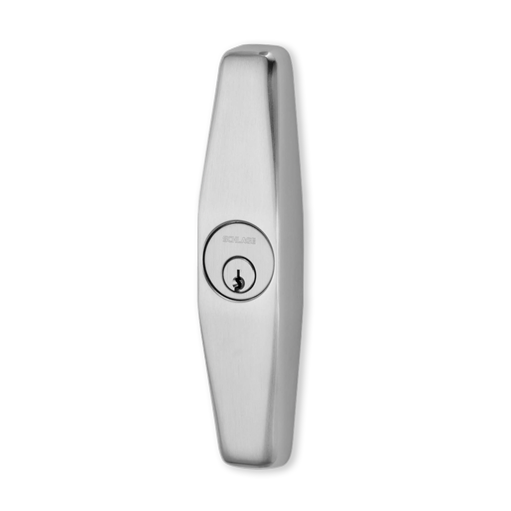

    • 388
    • 392
    • 550
    • Exit Only (EO)
    • Dummy trim (DT)
    • Lever (L)
    • Lever, blank escutcheon (LBE)
    • Lever, dummy trim (LDT)
    • Night latch, key retracts (NL)
    • Night latch, optional pull (NLOP)
    • Thumbturn (T)
    • Thumbturn, blank escutcheon (TBE)
    • Turn lever (TL)
    • Turn lever, blank escutcheon (TLBE)
    • Turn lever, optional pull (TLOP)
    • 605: Bright Brass
    • 606: Satin Brass
    • 611: Bright Bronze*
    • 612: Satin Bronze
    • 613: Satin Bronze, Oil-Rubbed
    • 619: Satin Nickel
    • 625: Polished Chrome
    • 626: Satin Chrome
    • 626-AM: Satin Chrome, Antimicrobial
    • 628: Anodized aluminum
    • 710: Duranodic Dark Bronze
    • 711: Black
    • 643E: Aged Bronze



    *Finish is available as a special.

    Mechanical Options

    • CD: Cylinder dogging (panic only)
    • LD: Less dogging
    • CDSI: Cylinder dogging security dogging indicators provides visible lock/unlock indicators showing whether device is dogged or undogged
    • HDSI: Hex key dogging security indicator provides visible lock/unlock indicators showing whether device is dogged or undogged
    • ESL: Emergency Secure Lockdown
    • PN: Pneumatic latch retraction, for areas where electrical devices banned
    • QM: Quiet mechanical options, provides damper-controlled relatching of device
    • AM: Antimicrobial finish
    • WH: Weep holes, drainage (weep) holes in mechanism case
    • HH: Wind and impact- Hurricane rated
    • HW: Wind only - Hurricane rated
    • AX: an accessible device that is certified to meet the 5 lb. force requirements for the 2010 American Disabilities Act (ADA) (Chapters 404.2.7 and 30934) and 2013 California Building Code (Chapter 11B-309.4)
    • PL: Pullman latch, latches are always extended



    Touch bar trim

    • RSS: Red silk screen
    • PUSH: Touchbar trim embossed PUSH
    • SG: Safety glow, Self-illuminating touchpad glows brightly during low or no light conditions
    • KN: Knurled touchbar, tactile warning applied to device
    • BRAILLE: Braille for visually impaired



    Electromechanical options

    Switches an be used as part of an access control system or in a standalone application.

    • LX:  Latchbolt monitoring signals use of an opening
    • RX: Request to exit
    • SS: Signal switch monitors pushpad and latchbolt
    • EL: Electric latch retraction enables remote unlatching
    • QEL: Quiet electric latch retraction,  electronic latch retraction with limited operational noise
    • CX: Chexit delayed egress, meets NFPA and IBC requirements for delayed egress; a standard device keeps doors secure for 15 seconds after a request to exit while a nuisance alarm sounds
    • ALK: Alarm kit, unauthorized opening triggers horn
    • CON:  Allegion Connect, Common connectors to connect various door hardware all the way to the power supply
    • E360: Electric locking and unlocking trim, remains latched while unlocked



    The 33A/35A Series offers many accessories to meet evolving needs of any facility; refer to the pricebook for a complete list.
