98/99 Series Push Pads

• Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs
• Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
• A variety of field-configurable options and retrofit kits available

• ANSI/BHMA A156.3 2014 Grade 1 certified
• ANSI/UL 10C (fire-rated only)
• ANSI/UL 305
• CAN/ULC-S104 (fire-rated only)
• CAN/ULC-S132

Specifications and certifications are specific to each configuration. See the 98/99 Series catalog for more information.

The 98/99 Series offers a solution for most single, double and double egress door applications.  Below are the available device types:

• Rim, no suffix
• 27: surface-mounted vertical rod (SVR)
• 47: concealed vertical rod (CVR)
• 47WDC: wood door concealed (WDC)vertical rod
• 48: concealed vertical rod (CVR) (bottom latch has longer throw)
• 49: concealed vertical cable (CVC)
• 50WDC: wood door concealed (WDC)vertical cable
• 52: 1-point concealed vertical cable (pool exit hardware)
• 57: 3-point latching
• 75: mortise lock devices

Devices can be ordered fire-rated by adding  “-F” to the suffix.

The 98/99 Series is available less control (LC), less trim (LT) and several versions of the exit trim models listed below:

• 110
• 374
• 376
• 392-7

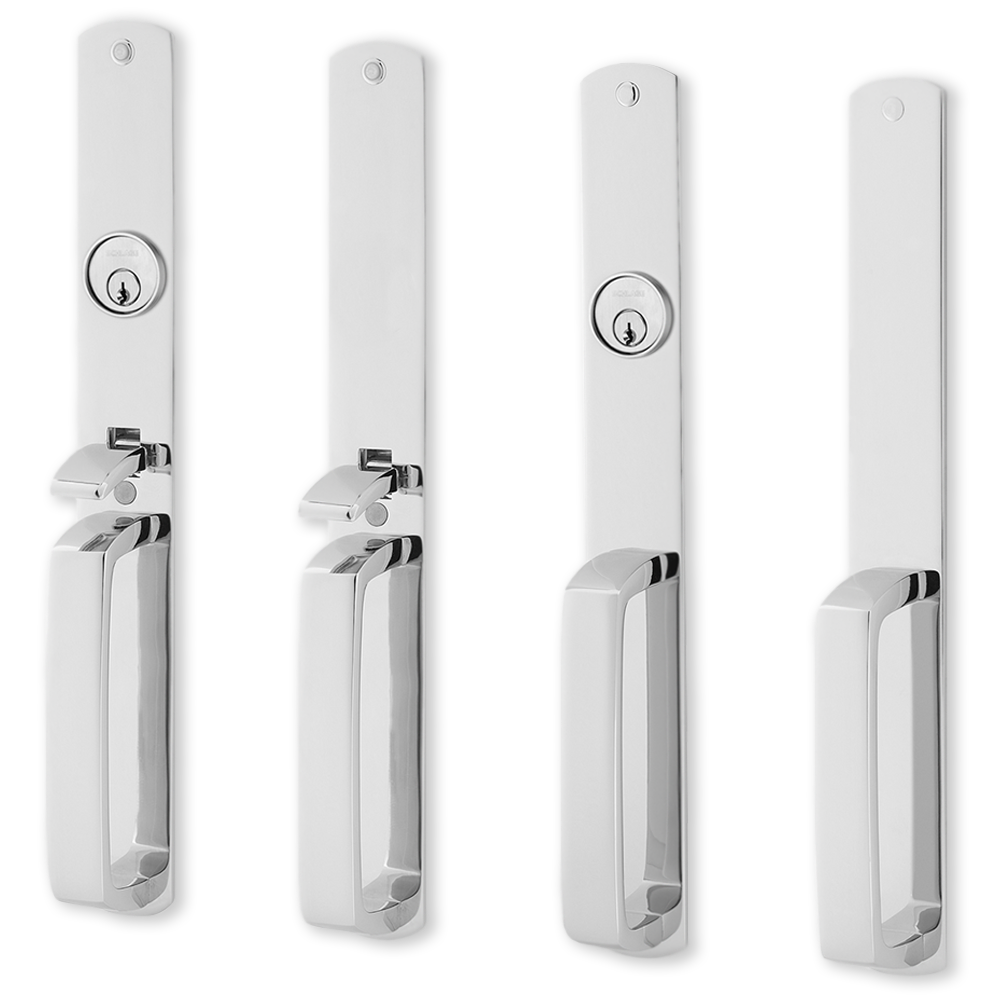

• 696

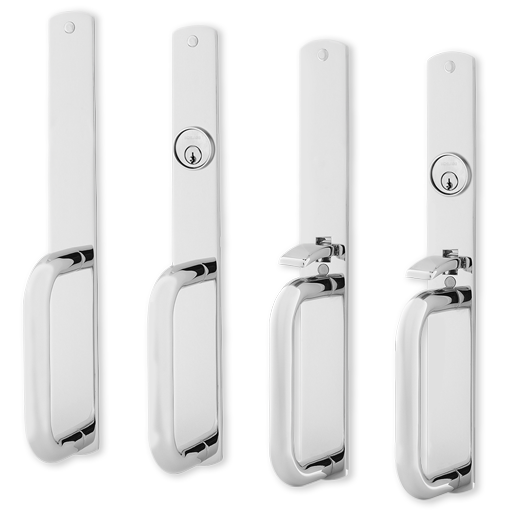

• 697
• VR910

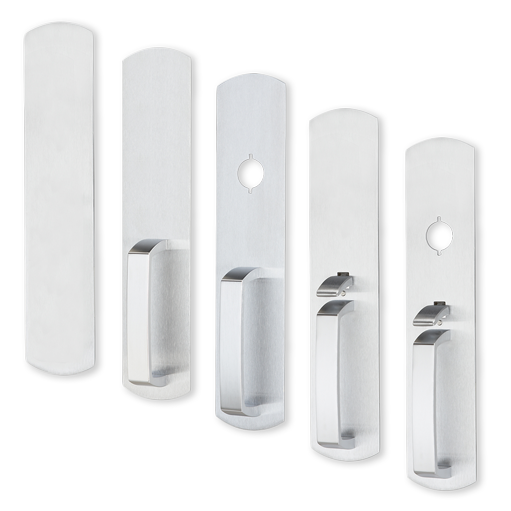

• 990
• 996

• Exit Only (EO)

• Dummy trim (DT)
• Knob (K)
• Knob, blank escutcheon (KBE)
• Knob, dummy trim (KDT)
• Knob night latch, key retracts (KNL)
• Lever (L)
• Lever, blank escutcheon (LBE)
• Lever, dummy trim (LDT)
• Lever-key capture (LKC)
• Lever, night latch, key retracts (LNL)
• Night latch, key retracts (NL)
• Night latch, optional pull (NLOP)
• Turn lever (TL)
• Turn lever, blank escutcheon (TLBE)
• Turn lever, optional pull (TLOP)
• Thumbpiece (TP)
• Thumbpiece, blank escutcheon (TPBE)

• 605: Bright Brass

• 606: Satin Brass
• 611: Bright Bronze*
• 612: Satin Bronze
• 613: Satin Bronze, Oil-Rubbed
• 619: Satin Nickel
• 625: Polished Chrome
• 626: Satin Chrome
• 626-AM: Satin Chrome, Antimicrobial*
• 628: Anodized aluminum
• 630: Satin Stainless Steel
• 630-AM: Satin Stainless Steel, Antimicrobial*
• 643E: Aged Bronze

• 710: Duranodic Dark Bronze
• 711: Black

*Finish is available as a special option.

The 98/99 Series can be customized with several mechanical, electronic and finish options to meet any facility needs. A few common options are below:

Mechanical Options

• CD: Cylinder dogging (panic only)
• CI: Cylinder dogging indicator
• DI: Dogging indicator
• HD: Hex dogging
• LD: Less dogging
• SD: Special dogging
• -2/-2SI: Double cylinder (-2) or double cylinder with security indicator (-2SI), allows users to lock the outside trim from inside the room, while still allowing free egress.
• CDSI: Cylinder dogging security dogging indicators provides at-a-glance verification of the panic device status
• HDSI: Hex key dogging security indicator provides at-a-glance verification of the panic device status
• PN: Pneumatic latch retraction, for areas where electrical devices banned
• QM: Quiet mechanical options, provides damper-controlled relatching of device
• WH: Weep holes, drainage (weep) holes in mechanism case
• HH: Wind and impact- Hurricane rated
• HW: Wind only - Hurricane rated
• AX: an accessible device that is certified to meet the 5 lb. force requirements for the 2010 American Disabilities Act (ADA) (Chapters 404.2.7 and 30934) and 2013 California Building Code (Chapter 11B-309.4)
• PL: Pullman latch, latches are always extended

Touch bar trim

• RSS: Red silk screen
• PUSH: Touchbar trim embossed PUSH
• SG: Safety glow, Self-illuminating touchpad glows brightly during low or no light conditions
• KN: Knurled touchbar, tactile warning applied to device
• BRAILLE: Braille for visually impaired

Electromechanical options

Switches an be used as part of an access control system or in a standalone application.

• LX:  Latchbolt monitoring signals use of an opening
• RX: Request to exit
• SS: Signal switch monitors pushpad and latchbolt
• EL: Electric latch retraction enables remote unlatching
• QEL: Quiet electric latch retraction,  electronic latch retraction with limited operational noise
• ESL: Emergency secure lockdown, allows local lockdown where access control is present on large classrooms.
• CX: Chexit delayed egress, meets NFPA and IBC requirements for delayed egress; a standard device keeps doors secure for 15 seconds after a request to exit while a nuisance alarm sounds
• ALK: Alarm kit, unauthorized opening triggers horn
• CON:  Allegion Connect, Common connectors to connect various door hardware all the way to the power supply
• E996: Electric locking and unlocking trim, remains latched while unlocked
• E7500: Electric mortise lock device
• XP: patented 2-O 23 piece latchbolt design, available for 98/99 Series panic and fire applications

The 98/99 Series offers many accessories to meet evolving needs of any facility; refer to the pricebook for a complete list.
