Concealed Vertical Cable Solutions

Concealed Vertical Exit Device Solutions

The concealed vertical solutions are designed to provide improved security and aesthetics.

A concealed vertical exit device is the ideal solution for openings requiring enhanced security and streamlined aesthetics – no surface-mounted rods, mullions or metal wraps are visible.

Von Duprin offers two concealed vertical cable solutions: one for hollow metal and aluminum doors (-49 option) and is known as Concealed Vertical Cable (CVC); and one for wood doors (-50 option) and is known as Wood Door Concealed (WDC). Both the CVC and WDC solutions are available for panic- or fire-rated applications and utilize the standard Von Duprin trim used with the 33/35A Series and 98/99 Series exit devices.

What makes the Von Duprin concealed vertical cable solutions truly unique is their ability to perform in less than ideal conditions. The flexibility and slack in the cable system allows the device to function properly even if the top latch, device centerline and bottom latch are not vertically aligned. The concealed vertical system is not as sensitive to changing door conditions and requires significantly less maintenance over its lifetime than a traditional rod.

Concealed Vertical Cable Solutions

Concealed Vertical
Exit Devices

The concealed vertical solutions are designed to provide improved security and aesthetics. See 33A/35A Series or 98/99 Series for specific device finishes.



Looking for more information? Connect with an Allegion team member for help.

Overview

A concealed vertical exit device is the ideal solution for openings requiring enhanced security and streamlined aesthetics – no surface-mounted rods, mullions or metal wraps are visible.

Von Duprin offers two concealed vertical cable solutions: one for hollow metal and aluminum doors (-49 option) and is known as Concealed Vertical Cable (CVC); and one for wood doors (-50 option) and is known as Wood Door Concealed (WDC). Both the CVC and WDC solutions are available for panic- or fire-rated applications and utilize the standard Von Duprin trim used with the 33/35A Series and 98/99 Series exit devices.

What makes the Von Duprin concealed vertical cable solutions truly unique is their ability to perform in less than ideal conditions. The flexibility and slack in the cable system allows the device to function properly even if the top latch, device centerline and bottom latch are not vertically aligned. The concealed vertical system is not as sensitive to changing door conditions and requires significantly less maintenance over its lifetime than a traditional rod.

  Mechanical

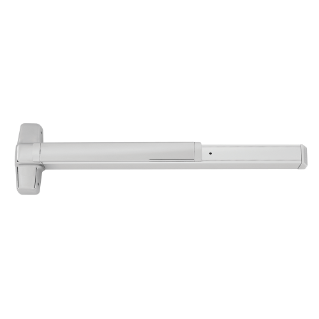

  Push Pad

  • Concealed cable solutions are designed to maintain positive latching even if alignment is not perfect due to changing door conditions.
  • Significantly less maintenance than traditional vertical rods, the entire assembly can be removed and reinstalled while door is hanging in a matter of minutes.
  • Cylinder not included.



CVC - For hollow metal and aluminum doors

  • "U" shaped top latch with greater than 90-degree bolt-to-strike engagement provides greater strength and deadlocking without the need for an auxiliary latch or unsightly latch release hardware
  • Should door sag, bottom latch can be repositioned in minutes by a single person without removing the door from frame
  • Frequent adjustment is greatly reduced



WDC - For wood doors

  • Latches are designed for optimized door prep, retaining structural integrity of the door
  • Self-adjusting bottom bolt deadlocks in any adjustment position providing enhanced security
  • Fire-rated applications without the use of metal wraps

Von Duprin exit devices will maintain the following:

  • BHMA certified to ANSI/BHMA A156.3 (2020) Grade 1 for exit devices
  • UL 305
  • UL10C Listed
