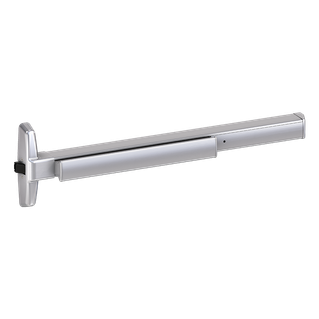

75 Series Push Pads

The 75 Series is a narrow stile exit device that is ideal for heavy duty warehouse, industrial, office, multifamily, retail, and commercial real estate applications.



Looking for more information? Connect with an Allegion team member for help.

Overview

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 75 exit device is a narrow stile device that provides reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces. It’s available in a wide range of device types, lever designs, options, and finishes.

Von Duprin's 70 Series also can be configured with the Quiet Electric Latch Retraction (QEL) option, which provides electronic control of an exit device where limited operational noise is desired. Plus, quick shipping is an option for time-sensitive projects.

  Multifamily

 Commercial

 Hospitality

  Heavy Duty

  Narrow Stile

  Push Pad

  • ANSI/BHMA Grade 1 certified and backed by Allegion services and support
  • Available in a wide range of device types, options, lever designs, and finishes
  • Available in 3' and 4' lengths that are field sizeable for single and double door applications
  • ANSI/BHMA A156.3, 2014 Grade 1 certified
  • ANSI/UL 10C (fire rated only)
  • ANSI/UL 305
  • CAN/ULC-S104 (fire rated only)
  • CAN/ULC-S132



Specifications and certifications are specific to each configuration. See the Von Duprin 78 & 75  Series catalog for more information.

The 75 Series offers a solution for most single, double and double egress door applications.  Below are the available device types:

  • Rim, no suffix
  • 27: surface-mounted vertical rods (SVR)
  • 47: concealed vertical rods (CVR)

Devices can be ordered fire-rated by adding  “-F” to the suffix.

The 75 Series is available less control (LC), less trim (LT) and several versions of the exit trim models listed below:

  • Exit Only (EO)
  • Dummy trim (DT)
  • Lever (L)
  • Lever, blank escutcheon (LBE)
  • Lever, dummy trim (LDT)
  • Night latch, key retracts (NL)
  • Night latch, optional pull (NLOP)
  • Turn lever (TL)
  • Turn lever, blank escutcheon (TLBE)



  • 605: Bright Brass
  • 606: Satin Brass
  • 612: Satin Bronze
  • 619: Satin Nickel
  • 625: Bright Chrome
  • 626: Satin Chrome
  • 628: Anodized Aluminum
  • 630: Satin Stainless Steel
  • 643e: Aged Bronze
  • 710: Duranodic Dark Bronze



The 75 Series can be customized with several mechanical, electronic and finish options to meet any facility needs. A few common options are below:



Mechanical Options

  • CD: Cylinder dogging (panic only)
  • HD: Hex dogging
  • LD: Less dogging
  • WH: Weep holes, drainage (weep) holes in mechanism case
  • AX: an accessible device that is certified to meet the 5 lb. force requirements for the 2010 American Disabilities Act (ADA) (Chapters 404.2.7 and 30934) and 2013 California Building Code (Chapter 11B-309.4)
  • LBR: Less Bottom Rod, Panic and Fire Rated

Electrified Options or Electromechanical Options

  • LX:  Latchbolt monitoring signals use of an opening
  • RX: Request to exit
  • QEL: Quiet electric latch retraction, electronic latch retraction with limited operational noise
  • ALK: Alarm kit, unauthorized opening triggers horn
  • CON:  Allegion Connect, Common connectors to connect various door hardware all the way to the power supply
  • E780 / E360: Electric locking and unlocking trim, remains latched while unlocked



The 75 Series offers many accessories to meet evolving needs of any facility; refer to the pricebook for a complete list.

Von Duprin 101 Icon

Exit Devices

For frequently asked questions, educational resources and technical product materials, visit the Exit Devices 101 page.

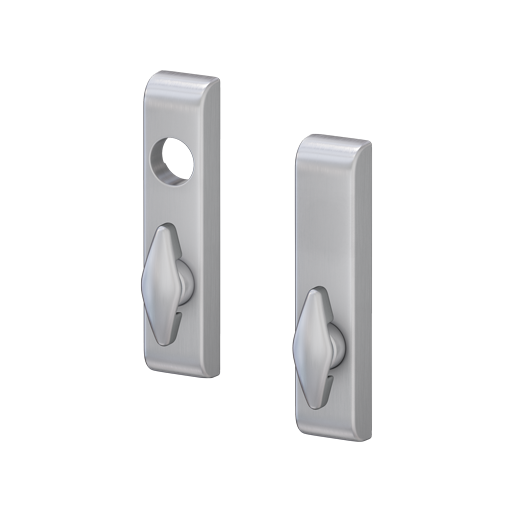

Compatible Exit Trim
